PN 10 Cast Steel Storm Angle Valve
PN 10 Cast Steel Storm Angle Valve
SKU:VAL-9e2a1e
Durable and efficient PN 10 Cast Steel Storm Angle Valve for precise flow control in industrial applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PN 10 Cast Steel Storm Angle Valve
$289.99
Quantity: 1
Claim Your Seller Account
PN 10 Cast Steel Storm Angle Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

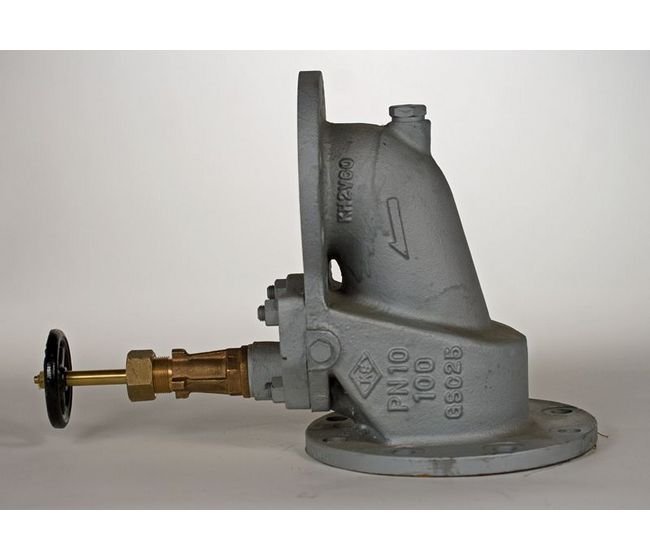

The PN 10 Cast Steel Storm Angle Valve is a robust solution designed for durability and high-performance in demanding industrial settings. Constructed with Cast Steel body, Brass seat and stem, and Bronze disc, it ensures reliable operation under varying pressures. Featuring DIN 17053 compliance, this valve guarantees secure sealing and efficient flow control. The Handwheel actuator provides manual control, making it ideal for applications requiring precise adjustment. With Flanged Drilled connections meeting DIN2501-PN10 standards, this valve is a dependable choice for institutional and government procurement needs.

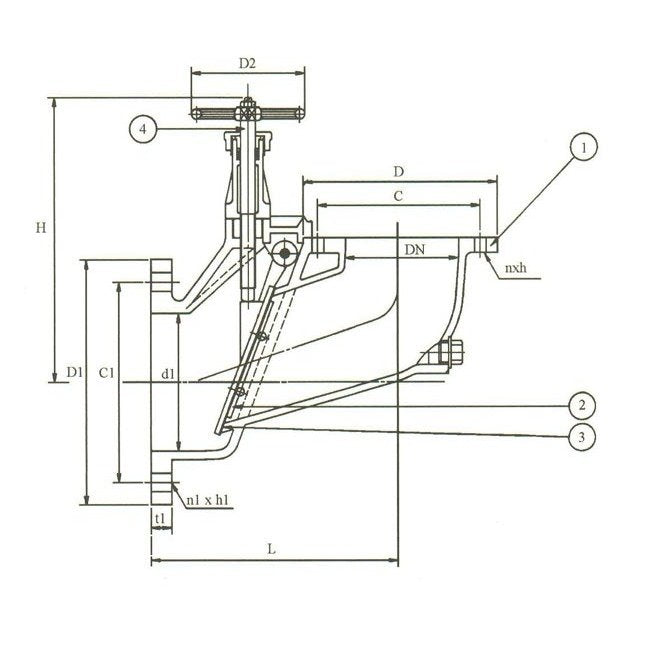

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
210 mm
Specifications C1
270 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D1
315 mm
Specifications D2
125 mm
Specifications Disc Material
Bronze
Specifications H
292 mm
Specifications H1
22 mm
Specifications Hydraulic Inspection Body
5.1
Specifications Hydraulic Inspection Seat
2.0
Specifications Impaissa Code
754289 | 754295
Specifications L
290 mm
Specifications N1 Number Of Holes
8
Specifications N Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
22 mm
Specifications T1
22 mm
Specifications Weight
36.5 kg
