PN 100 Cast Steel Globe SDNR Valve - DIN Certified

Name: PN 100 Cast Steel Globe SDNR Valve - DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-4abb98
Price: 599.99 USD
Availability: OutOfStock

SKU:VAL-4abb98

Precision-engineered PN 100 Cast Steel Globe SDNR Valve for industrial reliability. DIN certified for optimal performance.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 100 Cast Steel Globe SDNR Valve is a robust choice for industrial applications. Constructed with precision, the valve features a Cast Steel body, Stellited seat and disc materials, and a Stainless Steel stem. With ISO5752 Face to Face dimensions and DIN2501-PN100 Flanges, this valve ensures reliable performance. The handwheel actuator allows manual control, while the sturdy design meets stringent industry standards for durability and longevity.

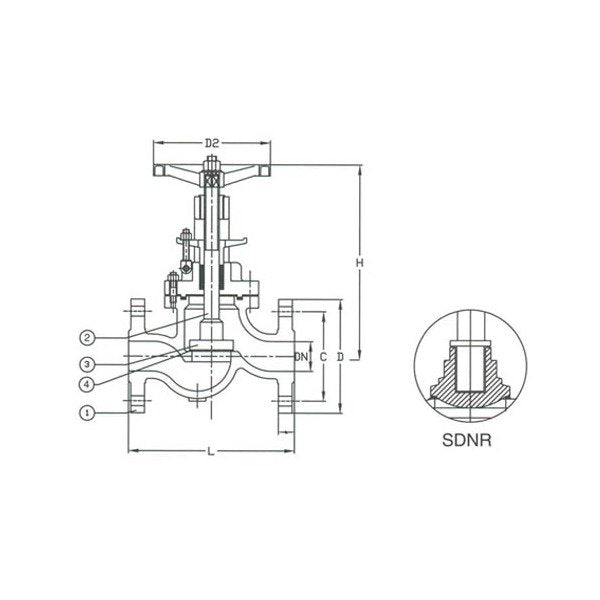

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

265 mm

Specifications D2

300 mm

Specifications Disc Material

Stellited

Specifications H

580 mm

Specifications Hydraulic Inspection Body

150

Specifications Hydraulic Inspection Seat

100

Specifications L

430 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

100

Specifications Stem Material

Stainless Steel

Specifications T

40 mm

Specifications Weight

106 kg

PN 100 Cast Steel Globe SDNR Valve - DIN Certified
