Reliable PN 100 Cast Steel Globe Valve with Stellited seat and disc, Stainless Steel stem. ISO5752 compliant, perfect for industrial use.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 100 Cast Steel Globe SDNR Valve is a robust and durable solution for industrial fluid control systems. Constructed with high-quality materials including Cast Steel body, Stellited seat, and disc, and Stainless Steel stem, this valve ensures reliable performance under high pressures. With precise engineering to comply with ISO5752 standards, the valve offers exceptional leakage control and long-term efficiency. Suitable for applications requiring DIN2501-PN100 flanges, this valve is ideal for institutional and government procurement needs.

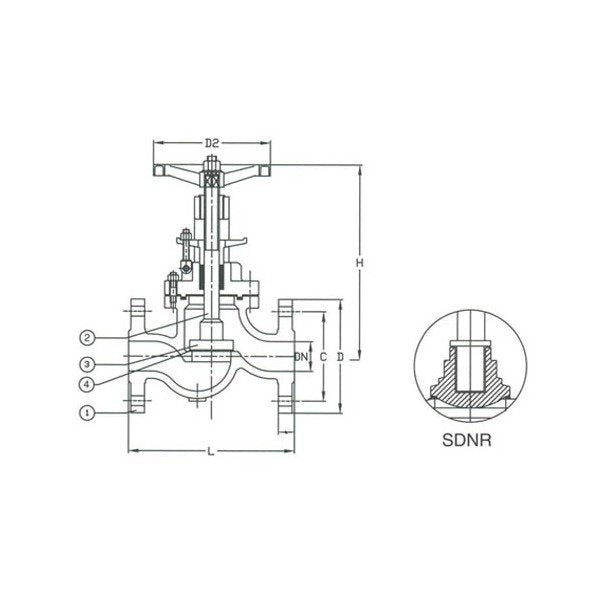

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

290 mm

Specifications Connection

Flanged Drilled

Specifications D

355 mm

Specifications D2

500 mm

Specifications Disc Material

Stellited

Specifications H

630 mm

Specifications Hydraulic Inspection Body

150

Specifications Hydraulic Inspection Seat

100

Specifications L

550 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

50 mm

Specifications Weight

246 kg
