PN 100 Cast Steel Globe SDNR Valve - DIN2501-PN100

Name: PN 100 Cast Steel Globe SDNR Valve - DIN2501-PN100
Brand: World Wide Metric, Inc.
SKU: VAL-2d5f87
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-2d5f87

Durable PN 100 Cast Steel Globe SDNR Valve for industrial applications. Compliant with ISO5752 & DIN2501-PN100.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 100 Cast Steel Globe SDNR Valve is a high-performance valve designed for industrial applications requiring robust construction and reliable operation. Constructed with Cast Steel body and Stellited seat/disc materials, this valve ensures durability and longevity in demanding environments. The Stainless Steel stem and Handwheel actuator enable precise control and easy operation. Compliant with ISO5752 and DIN2501-PN100 standards, this globe valve meets stringent industry requirements for performance and safety.

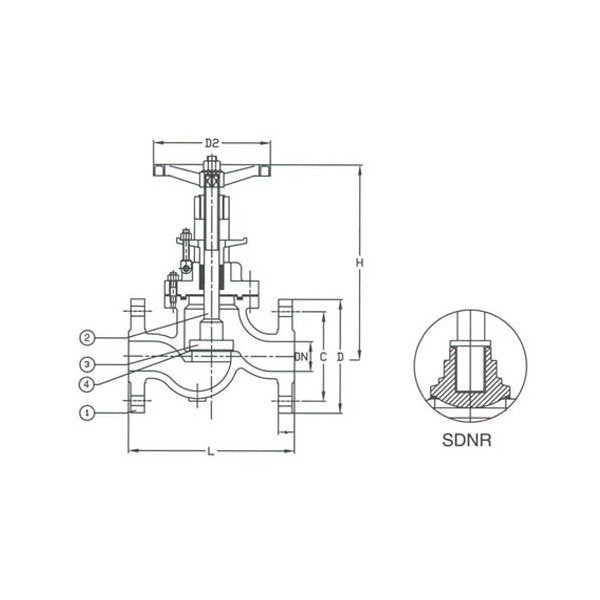

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

170 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Stellited

Specifications H

480 mm

Specifications Hydraulic Inspection Body

150

Specifications Hydraulic Inspection Seat

100

Specifications L

340 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

34 mm

Specifications Weight

55.0 kg

PN 100 Cast Steel Globe SDNR Valve - DIN2501-PN100
