PN 16 Bronze Angle Bolted Bonnet SDNR Valve - 100 Size

Name: PN 16 Bronze Angle Bolted Bonnet SDNR Valve - 100 Size
Brand: World Wide Metric, Inc.
SKU: VAL-f2222b
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-f2222b

Durable PN 16 Bronze Angle Valve for precise flow control in industrial applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet SDNR Valve is a top-quality valve designed for durability and performance. Crafted with precision, this valve features a Gunmetal body, bronze seat, and disc, ensuring reliability in any application. The stem is made of high-grade Brass, guaranteeing smooth operation. With precise dimensions meeting DIN standards, this valve is suitable for various industrial settings. The handwheel actuator allows for easy control, while the flanged connection provides secure installation. Trust the PN 16 Bronze Angle Bolted Bonnet SDNR Valve for superior flow control and longevity.

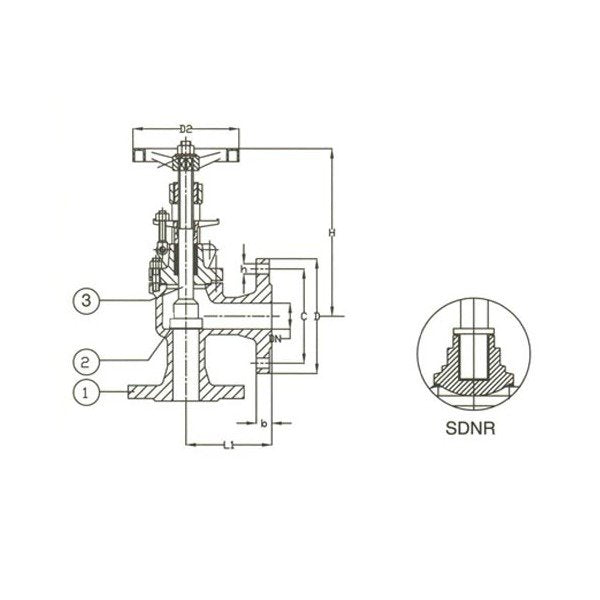

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

375 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

175 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

32.0 kg
