PN 16 Bronze Angle Bolted Bonnet SDNR Valve - 250 Size

Name: PN 16 Bronze Angle Bolted Bonnet SDNR Valve - 250 Size
Brand: World Wide Metric, Inc.
SKU: VAL-ea5be0
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-ea5be0

Durable PN 16 Bronze Angle Valve with Brass Stem, DIN Standards Compliant

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet SDNR Valve is a robust and reliable valve designed for industrial applications. Constructed with Gunmetal body, Bronze seat, and disc materials, this valve offers exceptional durability and corrosion resistance. The valve features a Brass stem and Handwheel actuator for smooth operation. Compliant with DIN standards, this valve ensures precise hydraulic inspection and optimal performance. With a size of 250, this valve is suitable for a range of applications, making it a trusted choice for institutional buyers seeking quality and reliability.

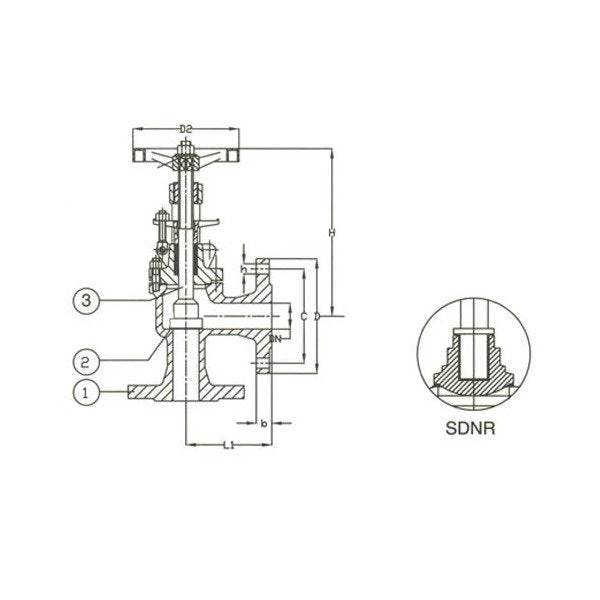

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

350 mm

Specifications Connection

Flanged Drilled

Specifications D

395 mm

Specifications D2

500 mm

Specifications Disc Material

Bronze

Specifications H

750 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

325 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

250

Specifications Stem Material

Brass

Specifications T

26 mm

Specifications Weight

175 kg
