PN 16 Bronze Angle Bolted Bonnet SDNR Valve - DIN Angle Valve
PN 16 Bronze Angle Bolted Bonnet SDNR Valve - DIN Angle Valve
SKU:VAL-3cad88
Durable PN 16 Bronze Angle Valve for precise fluid control in industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
PN 16 Bronze Angle Bolted Bonnet SDNR Valve - DIN Angle Valve
$189.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Angle Bolted Bonnet SDNR Valve - DIN Angle Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

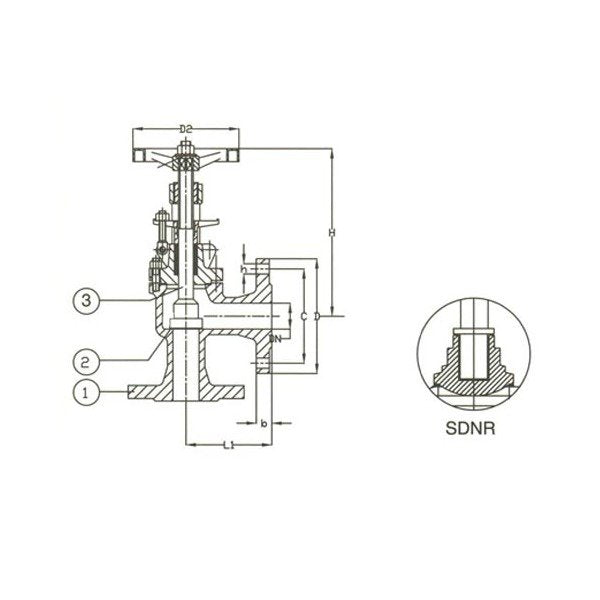

The PN 16 Bronze Angle Bolted Bonnet SDNR Valve is designed for dependable performance in industrial settings. Crafted with Gunmetal body, Disc, and Seat, along with Brass or Stainless Steel Stem, this valve ensures durability and longevity. Compliant with DIN standards, featuring Handwheel actuators and Flanged Drilled connections, it offers precision control and easy installation. With dimensions meeting DIN2501-PN16 specifications, this valve is a reliable choice for fluid management applications.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Bronze
Specifications H
190 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
025
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
4.5 kg
