PN 16 Bronze Angle Bolted Bonnet Short Pattern Valve - DIN 2501-PN16

Name: PN 16 Bronze Angle Bolted Bonnet Short Pattern Valve - DIN 2501-PN16
Brand: World Wide Metric, Inc.
SKU: VAL-599eea
Price: 139.99 USD
Availability: OutOfStock

SKU:VAL-599eea

High-quality Bronze Angle Valve with DIN standard compliance for industrial use.

$139.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Bolted Bonnet Short Pattern Valve is a high-quality valve designed for reliable performance in industrial applications. The valve features a Gunmetal body, Brass stem, and Bronze disc and seat materials, meeting stringent DIN standards ensuring durability and long-term operation. With precise hydraulic inspections, 4 flanged drilled connections, and a sturdy Handwheel actuator, this valve offers efficiency and ease of use. Suitable for institutional buyers looking for quality valves compliant with industry standards.

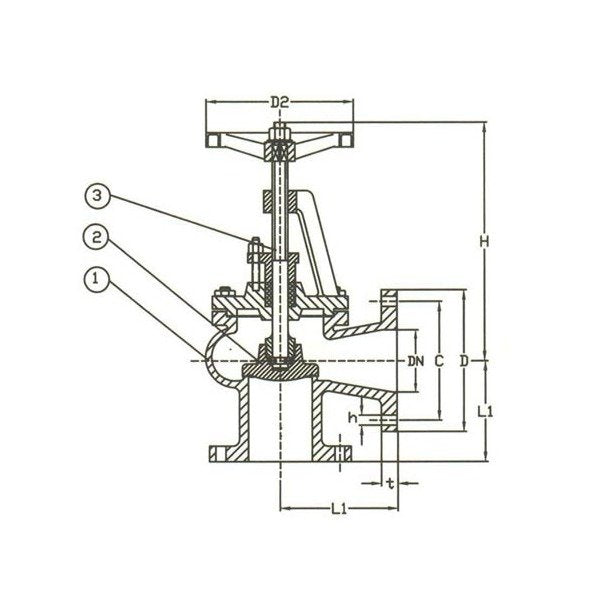

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

75 mm

Specifications Connection

Flanged Drilled

Specifications D

105 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

65 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

020

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

5.00 kg
