PN 16 Bronze Angle Bolted Bonnet Valve
PN 16 Bronze Angle Bolted Bonnet Valve
SKU:VAL-7b27d3
DIN-compliant PN 16 Bronze Angle Valve for reliable hydraulic performance in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PN 16 Bronze Angle Bolted Bonnet Valve
$399.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Angle Bolted Bonnet Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Angle Bolted Bonnet Valve offers durable construction with a gunmetal body, bronze seat, disc, and stem. Compliant with DIN standards, this valve ensures reliable hydraulic performance. Featuring a handwheel actuator and flanged connection, it is designed for ease of use and installation in various industrial applications.
Ready to Grow Without Cash Flow Constraints?

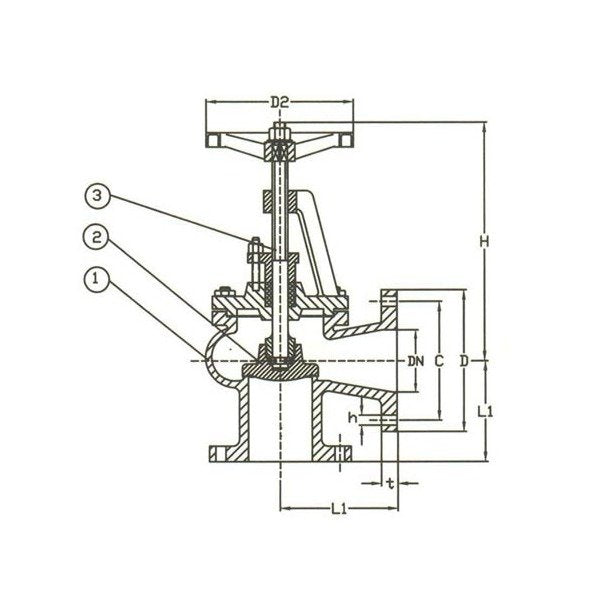

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
225 mm
Specifications Disc Material
Bronze
Specifications H
360 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
170 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
26 mm
Specifications Weight
65.0 kg
