PN 16 Bronze Angle Bolted Bonnet Valve - Short Pattern
PN 16 Bronze Angle Bolted Bonnet Valve - Short Pattern
SKU:VAL-7150e2
Reliable and durable PN 16 Bronze Angle Valve for superior hydraulic performance and longevity.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Angle Bolted Bonnet Valve - Short Pattern is a high-quality valve designed for durability and reliability. Constructed with bronze body, seat, and disc materials, and a brass stem, this valve meets stringent industry standards for performance and longevity. It features a handwheel actuator for easy operation and flanged connections for secure installation. With precise dimensions and a weight of 6 kg, this valve is suitable for various applications requiring a size of 025. Trust in this valve for exceptional hydraulic performance and lasting efficiency.

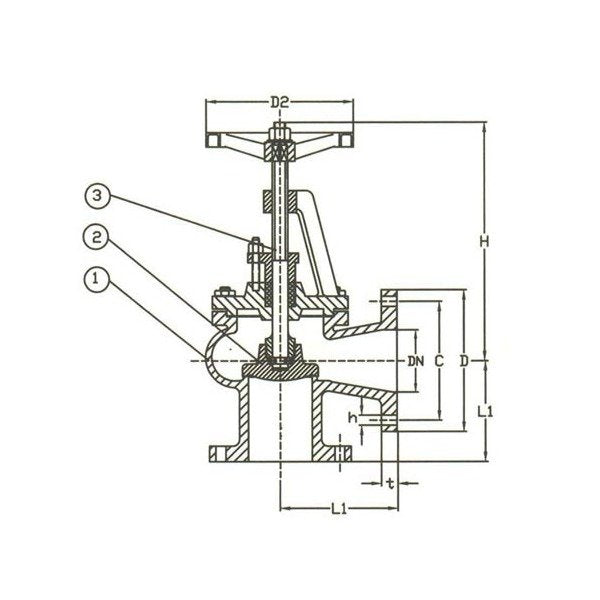

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Bronze
Specifications H
175 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
70 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
025
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
6 kg
