PN 16 Bronze Angle Valve with Bolted Bonnet

Name: PN 16 Bronze Angle Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-8487d1
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-8487d1

Durable PN 16 Bronze Angle Valve for precise fluid control in industrial applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Valve with Bolted Bonnet is a durable and reliable solution for fluid control applications. Constructed with bronze body, seat, disc, and brass stem, this valve ensures longevity and optimal performance. Featuring handwheel actuators and flanged drilled connections, it meets stringent standards for hydraulic inspection and dimensions as per DIN and ISO specifications. With a size of 300 and weighing 205.0 kg, this valve is designed for industrial-grade operations, providing precision control and easy maintenance.

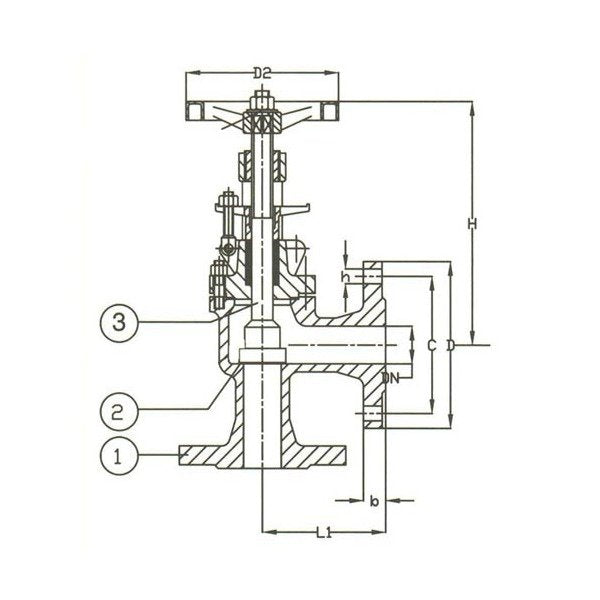

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

400 mm

Specifications Connection

Flanged Drilled

Specifications D

445 mm

Specifications D2

500 mm

Specifications Disc Material

Bronze

Specifications H

900 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

325 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

300

Specifications Stem Material

Brass

Specifications T

28 mm

Specifications Weight

205.0 kg
