PN 16 Bronze Angle Valve with Bolted Bonnet

Name: PN 16 Bronze Angle Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-de343a
Price: 1299.99 USD
Availability: OutOfStock

SKU:VAL-de343a

Durable PN 16 Bronze Angle Valve with Bolted Bonnet, ideal for industrial applications. DIN standards compliant for precision and reliability.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Valve with Bolted Bonnet is a reliable and durable valve designed for industrial applications. Constructed with gunmetal body, bronze disc, and brass stem, this valve ensures optimal performance and longevity. With DIN standards compliance, including ISO5752 Series 8 for face to center measurements and DIN N10 for flanges, this valve offers precision and reliability. The handwheel actuator provides easy operation, while the flanged connection allows for secure installation. Suitable for hydraulic systems with a size of 300, this valve is built to meet the needs of institutional and government buyers.

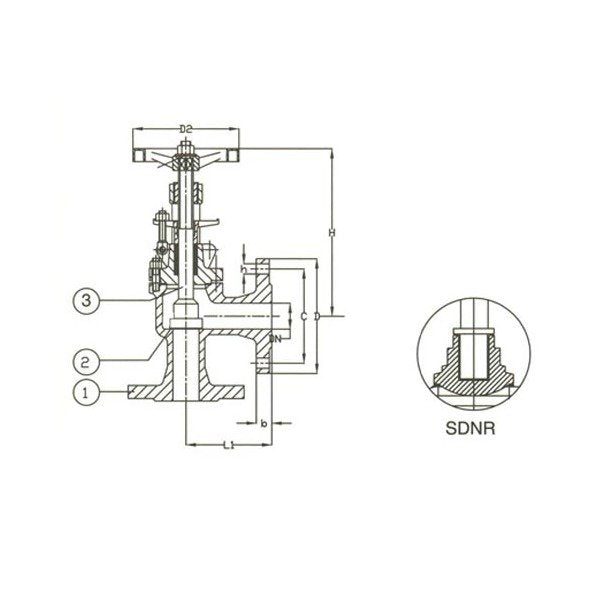

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

400 mm

Specifications Connection

Flanged Drilled

Specifications D

445 mm

Specifications D2

500 mm

Specifications Disc Material

Bronze

Specifications H

900 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

325 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

300

Specifications Stem Material

Brass

Specifications T

28 mm

Specifications Weight

205.0 kg

PN 16 Bronze Angle Valve with Bolted Bonnet
