PN 16 Bronze Angle Valve with Bolted Bonnet and SDNR Feature

Name: PN 16 Bronze Angle Valve with Bolted Bonnet and SDNR Feature
Brand: World Wide Metric, Inc.
SKU: VAL-de442d
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-de442d

Durable PN 16 Bronze Angle Valve with Bolted Bonnet and SDNR feature for industrial applications.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

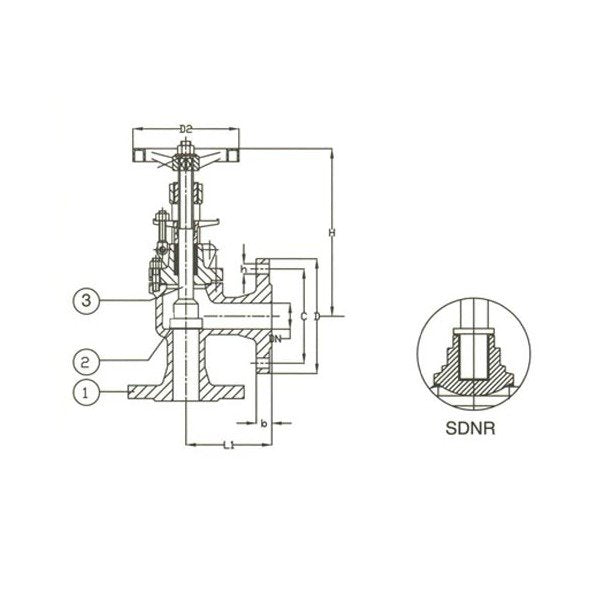

The PN 16 Bronze Angle Valve with Bolted Bonnet and SDNR feature is a robust and reliable industrial valve suitable for a wide range of applications. Constructed with high-quality bronze body, seat, and disc materials meeting DIN standards, it ensures durability and corrosion resistance. The stem options of brass or stainless steel provide flexibility, while the handwheel actuator allows for manual operation. This valve conforms to ISO5752 Series 8 standards, with flanges per DIN N10 specifications, making it ideal for institutional use where precision and performance are paramount.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Bronze

Specifications H

570 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

275 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

200

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

135.0 kg

PN 16 Bronze Angle Valve with Bolted Bonnet and SDNR Feature
