PN 16 Bronze Angle Valve with Bolted Bonnet - DIN Certified

Name: PN 16 Bronze Angle Valve with Bolted Bonnet - DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-69880e
Price: 369.99 USD
Availability: OutOfStock

SKU:VAL-69880e

High-quality PN 16 Bronze Angle Valve with Bolted Bonnet for reliable industrial performance.

$369.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Angle Valve with Bolted Bonnet is a premium valve designed for durability and optimal performance. Constructed with high-quality bronze materials for the body, seat, and disc, this valve ensures reliable operation in various applications. The brass stem or stainless steel option provides added versatility and strength. Equipped with Handwheel actuators for easy control, and featuring Flanged Drilled connections, this valve is suitable for DIN standards compliance, making it a preferred choice for industrial and institutional settings.

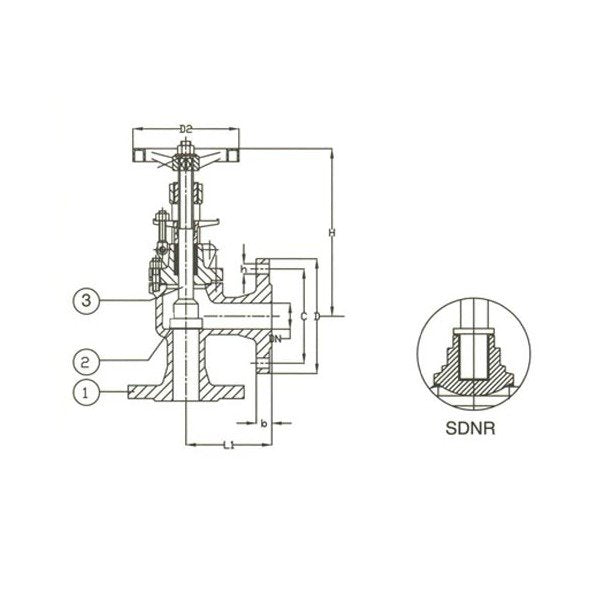

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

300 mm

Specifications Disc Material

Bronze

Specifications H

460 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

225 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

150

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

74 kg

PN 16 Bronze Angle Valve with Bolted Bonnet - DIN Certified
