PN 16 Bronze Angle Valve with Flanged Connection
PN 16 Bronze Angle Valve with Flanged Connection
SKU:VAL-762aba
Durable PN 16 Bronze Angle Valve for precise fluid control in industrial settings.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
PN 16 Bronze Angle Valve with Flanged Connection
$199.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Angle Valve with Flanged Connection
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Angle Valve with a Bolted Bonnet offers exceptional durability and performance. Constructed with premium bronze body, seat, and disc materials, this valve ensures reliability in demanding industrial settings. The valve meets DIN standards for precise hydraulic inspections and features a Brass stem providing corrosion resistance. Equipped with a Handwheel actuator and Flanged Drilled connection, this valve is ideal for applications requiring secure and efficient fluid control. With dimensions conforming to ISO5752 Series 8 and DIN2501-PN16 flange specifications, this valve guarantees precise fit and operation.
Ready to Grow Without Cash Flow Constraints?

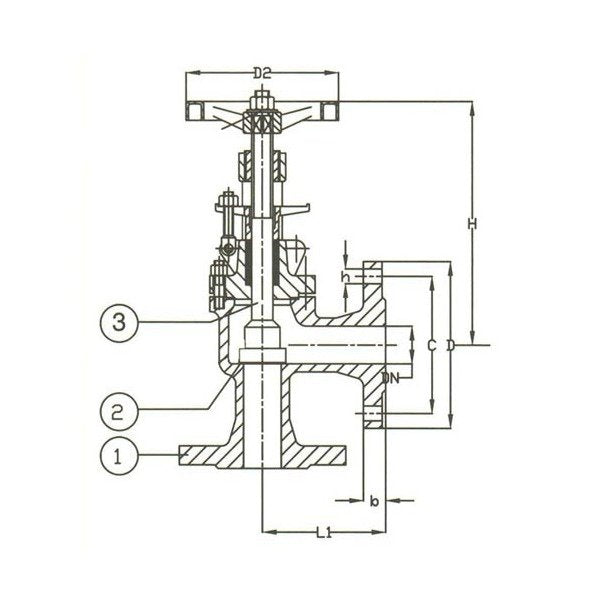

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
110 mm
Specifications Connection
Flanged Drilled
Specifications D
150 mm
Specifications D2
150 mm
Specifications Disc Material
Bronze
Specifications H
225 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
115 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
040
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
8.0 kg
