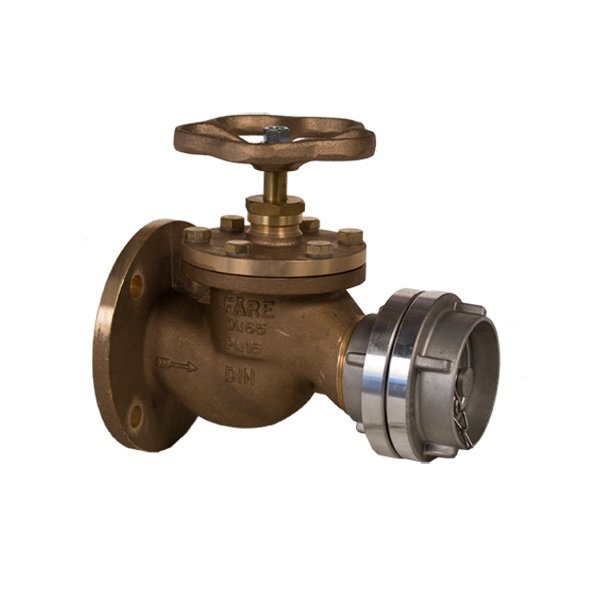

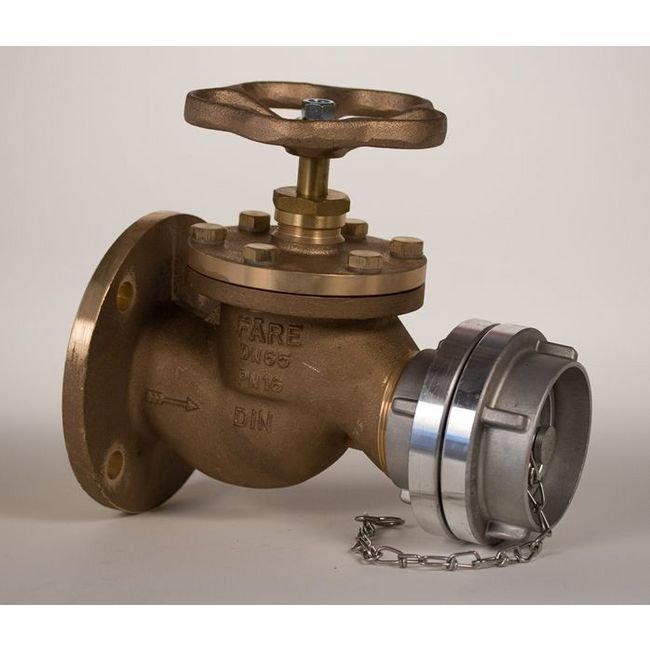

PN 16 Bronze Fire Hose Valves - Storz System Valve
PN 16 Bronze Fire Hose Valves - Storz System Valve
SKU:VAL-583e86
Premium PN 16 Bronze Fire Hose Valve with Globe Pattern, Storz System Valve, DIN compliant for reliable fire safety applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
PN 16 Bronze Fire Hose Valves - Storz System Valve
$249.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Fire Hose Valves - Storz System Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Fire Hose Valve in Globe Pattern with Storz System Valve is meticulously crafted to meet stringent DIN standards, featuring a Gunmetal body and Bronze components ensuring durability and reliable performance. Designed for fire safety applications, this valve offers hydraulic inspections, easy operation with a handwheel actuator, and precise dimensions as per DIN specifications. Trust in its robust construction and bronze materials for exceptional firefighting equipment.

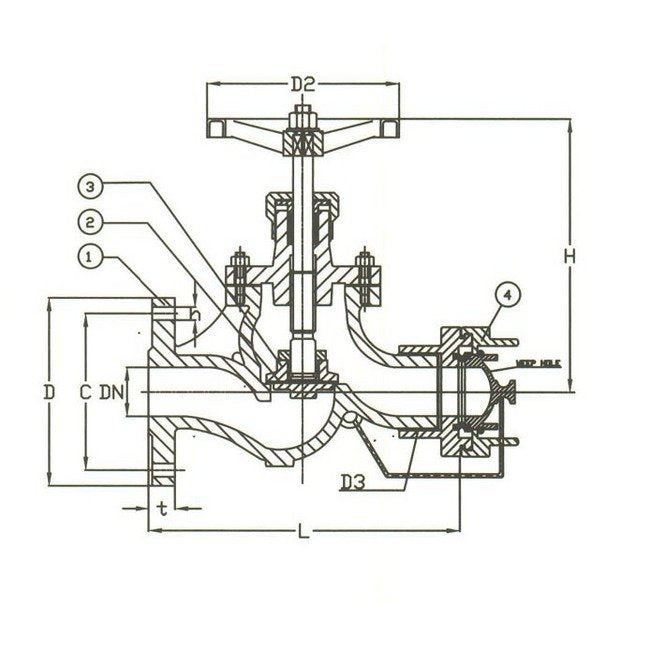

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
125 mm
Specifications D
165 mm
Specifications D2
140 mm
Specifications Disc Material
Bronze
Specifications H
155 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
165 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
050
Specifications Stem Material
Brass
Specifications T
18 mm
Specifications Weight
6.8 kg
