PN 16 Bronze Globe Bolted Bonnet Regular Valve - 200 Size

Name: PN 16 Bronze Globe Bolted Bonnet Regular Valve - 200 Size
Brand: World Wide Metric, Inc.
SKU: VAL-d330a2
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-d330a2

High-quality PN 16 Bronze Globe Valve - DIN Standards Compliant

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

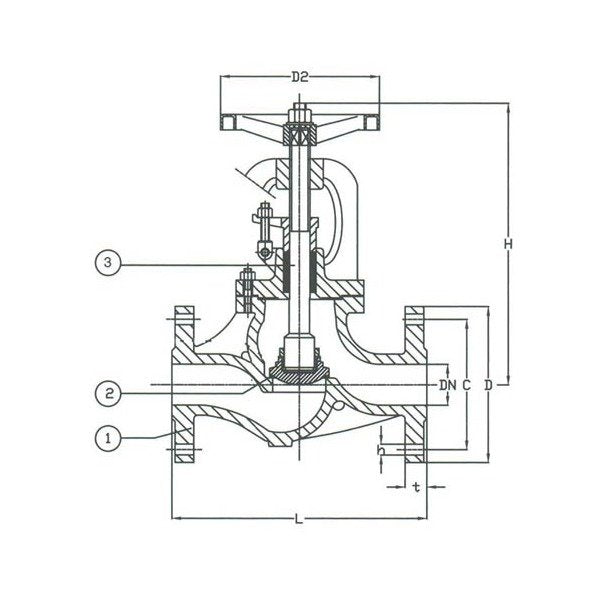

The PN 16 Bronze Globe Bolted Bonnet Regular Valve is designed for precision and durability. Constructed with bronze body, seat, disc, and brass stem, this valve ensures optimal performance. Compliant with DIN standards, featuring a handwheel actuator and flanged connection for ease of use. With a weight of 110.0 kg and dimensions conforming to ISO5752, it guarantees reliable operation in demanding environments.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Bronze

Specifications H

570 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755213

Specifications L

600 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

200

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

110.0 kg

PN 16 Bronze Globe Bolted Bonnet Regular Valve - 200 Size
