PN 16 Bronze Globe Bolted Bonnet Regular Valve - DIN Certified

Name: PN 16 Bronze Globe Bolted Bonnet Regular Valve - DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-55dda3
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-55dda3

Premium PN16 Bronze Globe Valve with DIN Certification for industrial applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Globe Bolted Bonnet Regular Valve is a precision-engineered valve designed for optimal performance in industrial applications. Crafted with Gunmetal body, seat, and disc as per DIN standards, and a Brass stem, this valve ensures durability and reliability. Its compact design with ISO5752 Series 1 Face to Face dimensions and DIN2501-PN16 flanges makes it versatile for a range of systems. The handwheel actuator allows easy operation, while the Flanged Drilled connection ensures a secure fit. Ideal for industries requiring top-tier quality and adherence to stringent standards.

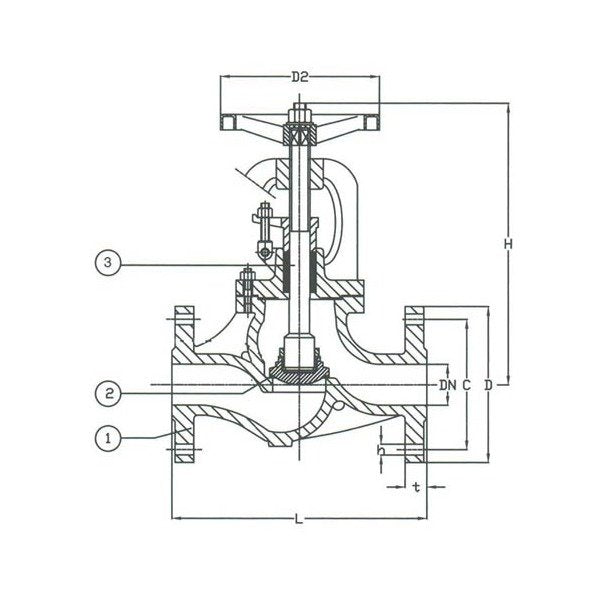

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755201

Specifications L

130 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

5.00 kg
