PN 16 Bronze Globe Bolted Bonnet Regular Valve - Institutional-Grade DIN Valve

Name: PN 16 Bronze Globe Bolted Bonnet Regular Valve - Institutional-Grade DIN Valve
Brand: World Wide Metric, Inc.
SKU: VAL-c2a9b9
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-c2a9b9

Premium PN 16 Bronze Valve for institutional use. DIN & ISO compliant, ideal for precise hydraulic control.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Globe Bolted Bonnet Regular Valve is a top-tier solution for institutional applications, featuring a durable bronze body, seat, and disc materials that meet rigorous DIN and ISO standards. With a secure flanged connection and handwheel actuator, this valve ensures precise hydraulic control and efficient operation. Compliant with federal procurement standards and industry certifications, this valve is designed to excel in demanding environments while offering reliability and longevity.

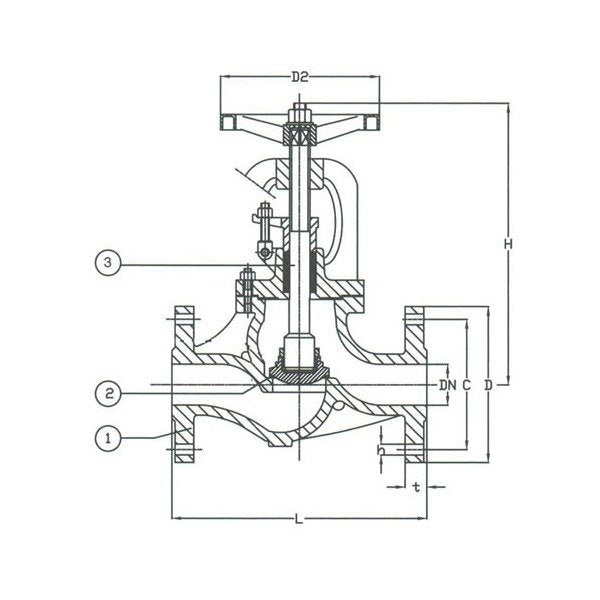

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

12.0 kg
