PN 16 Bronze Globe Bolted Bonnet Short Pattern Valve - DIN2501-PN16
PN 16 Bronze Globe Bolted Bonnet Short Pattern Valve - DIN2501-PN16
SKU:VAL-fd80f1
Premium PN 16 Bronze Globe Valve with DIN2501-PN16 compliance for reliable hydraulic applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
PN 16 Bronze Globe Bolted Bonnet Short Pattern Valve - DIN2501-PN16
$159.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Globe Bolted Bonnet Short Pattern Valve - DIN2501-PN16
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Globe Bolted Bonnet Short Pattern Valve is a durable and reliable industrial valve designed for superior performance. Crafted with high-quality Bronze and Brass materials, this valve ensures excellent corrosion resistance and longevity. Its compliance with DIN standards guarantees precision engineering and seamless integration into various systems. The Handwheel actuator provides easy operation, while the Flanged Drilled connection simplifies installation. Ideal for applications requiring impeccable hydraulic performance and robust construction.

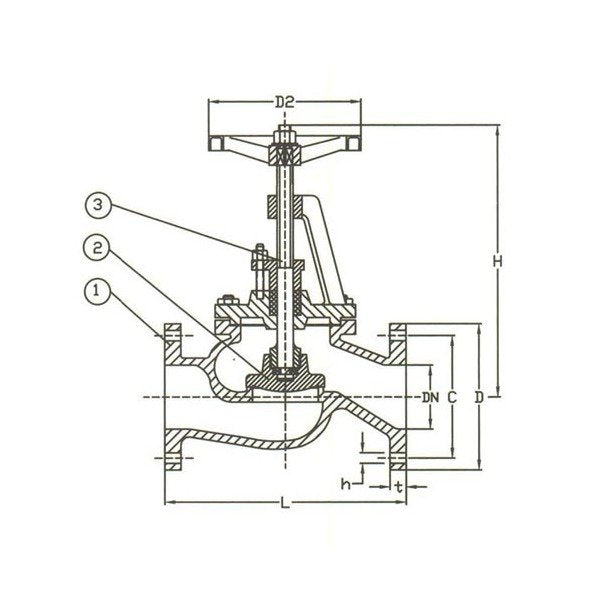

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Bronze
Specifications H
175 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
140 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
025
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
6 kg
