PN 16 Bronze Globe Bolted Bonnet Valve

Name: PN 16 Bronze Globe Bolted Bonnet Valve
Brand: World Wide Metric, Inc.
SKU: VAL-5dd1e1
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-5dd1e1

High-quality PN 16 Bronze Globe Bolted Bonnet Valve for reliable hydraulic flow control in various applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

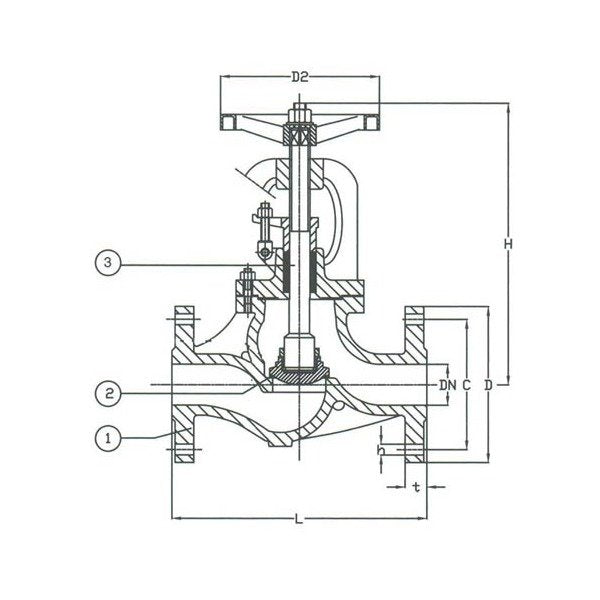

The PN 16 Bronze Globe Bolted Bonnet Valve is crafted with precision and durability in mind, featuring a gunmetal body, bronze seat, disc, and stem materials. Compliant with DIN standards, this valve ensures reliable performance under high hydraulic pressures. With a handwheel actuator for easy operation, it fits DIN2501-PN16 flanges perfectly. This valve is ideal for a wide range of applications requiring robust construction and efficient flow control.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

190 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755203

Specifications L

160 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

025

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

6 kg
