PN 16 Bronze Globe Union Bonnet Valve - DIN 2501 PN16, Handwheel Operated
PN 16 Bronze Globe Union Bonnet Valve - DIN 2501 PN16, Handwheel Operated
SKU:VAL-0b1faf
Durable PN 16 Bronze Globe Union Bonnet Valve with DIN 2501 PN16 standard, manual handwheel operation.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PN 16 Bronze Globe Union Bonnet Valve - DIN 2501 PN16, Handwheel Operated
$129.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Globe Union Bonnet Valve - DIN 2501 PN16, Handwheel Operated
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

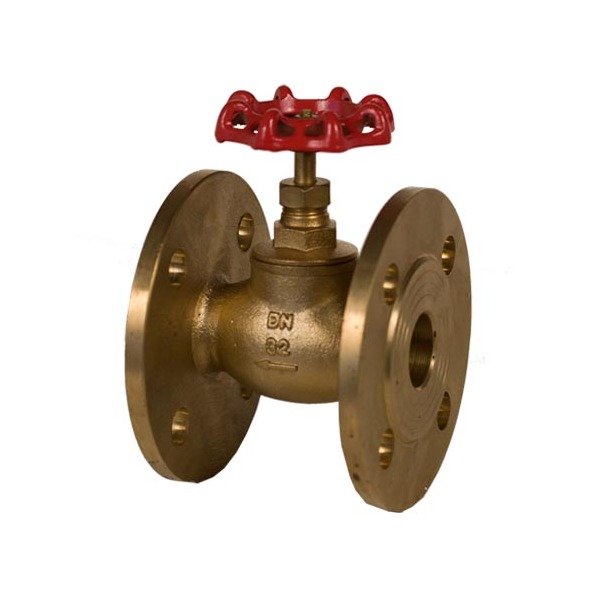

The PN 16 Bronze Globe Union Bonnet Valve is a high-quality valve designed for reliable performance in industrial applications. Constructed with gunmetal body, bronze disc, seat, and stem conforming to DIN standards, this valve ensures durability and corrosion resistance. Featuring a handwheel for manual operation, flanged connections according to DIN2501-PN16, and precise dimensions per DIN specifications, this valve delivers smooth flow control with easy installation and maintenance.
Ready to Grow Without Cash Flow Constraints?

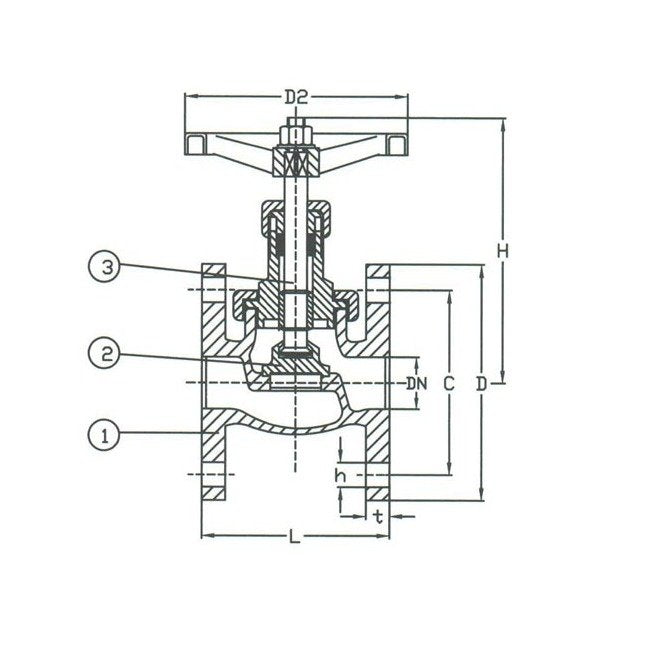

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
90 mm
Specifications Disc Material
Bronze
Specifications H
155 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
105 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
032
Specifications Stem Material
Brass
Specifications T
18 mm
Specifications Weight
4.5 kg
