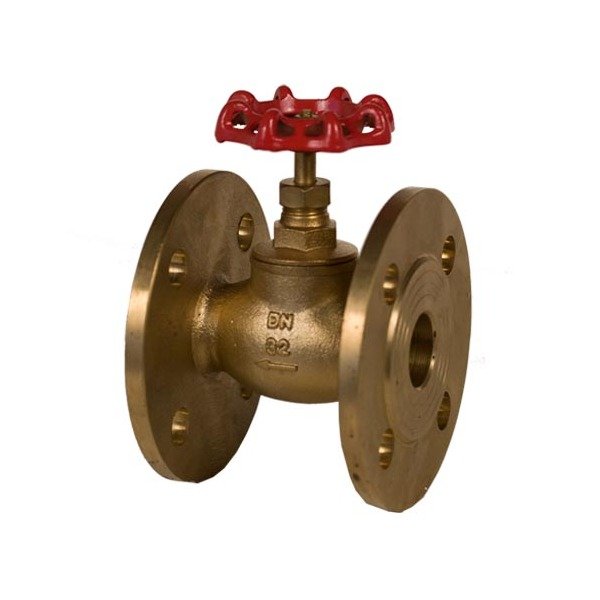

PN 16 Bronze Globe Union Bonnet Valve - DIN Valve for Hydraulic Systems

Name: PN 16 Bronze Globe Union Bonnet Valve - DIN Valve for Hydraulic Systems
Brand: World Wide Metric, Inc.
SKU: VAL-12ef47
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-12ef47

Durable PN 16 Bronze Globe Union Bonnet Valve for hydraulic systems. DIN-standard compliant.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Bronze Globe Union Bonnet Valve is expertly crafted to meet DIN standards, featuring a gunmetal body, bronze disc, and brass stem for superior durability. With precise hydraulic inspections on the body and seat, this valve ensures reliable performance in hydraulic systems. Equipped with a handwheel actuator and flanged connection according to DIN2501-PN16, this valve offers ease of operation and secure installation. Trusted for its quality materials and craftsmanship, this valve is ideal for industrial applications requiring precision and longevity.

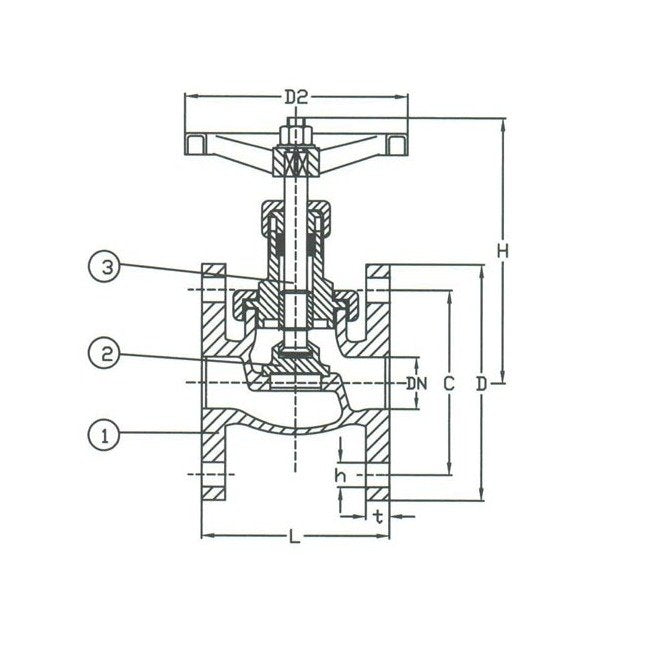

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

75 mm

Specifications Connection

Flanged Drilled

Specifications D

105 mm

Specifications D2

70 mm

Specifications Disc Material

Bronze

Specifications H

125 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

80 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

020

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

2.30 kg
