PN 16 Bronze Globe Valve - DIN 2501 PN16
PN 16 Bronze Globe Valve - DIN 2501 PN16
SKU:VAL-f6589f
Reliable PN 16 Bronze Globe Valve for precise fluid control in compliance with DIN standards. Easy to install and operate.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
PN 16 Bronze Globe Valve - DIN 2501 PN16
$219.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Globe Valve - DIN 2501 PN16
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Globe Bolted Bonnet Regular Valve is designed for high-performance applications in fluid control systems. Constructed with gunmetal body, disc, and seat materials meeting DIN standards, and a brass stem per DIN 17672, this valve ensures durability and reliability. With a size of 080 and hydraulic inspections compliant with industry standards, this valve guarantees precise control and leak-free operation. The flanged connection and handwheel operation make installation and adjustment easy. Meeting ISO5752 Series 1 and DIN2501-PN16 specifications, it is a versatile choice for both consumer and institutional buyers.

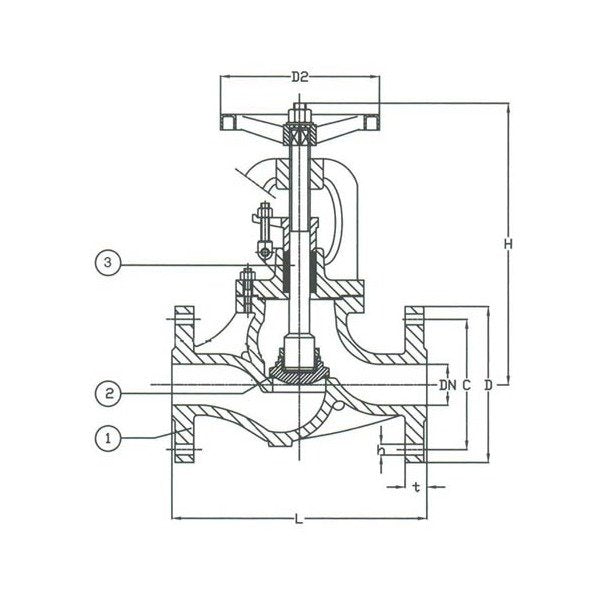

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Bronze
Specifications H
320 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755208
Specifications L
310 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
080
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
23.0 kg
