PN 16 Bronze Swing Check Valves, Wafer Style Short
PN 16 Bronze Swing Check Valves, Wafer Style Short
SKU:VAL-d46721
Durable PN 16 Bronze Swing Check Valve for reliable hydraulic performance. Meets DIN standards. Various disc material options available.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Bronze Swing Check Valves, Wafer Style Short
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Bronze Swing Check Valves, Wafer Style Short
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

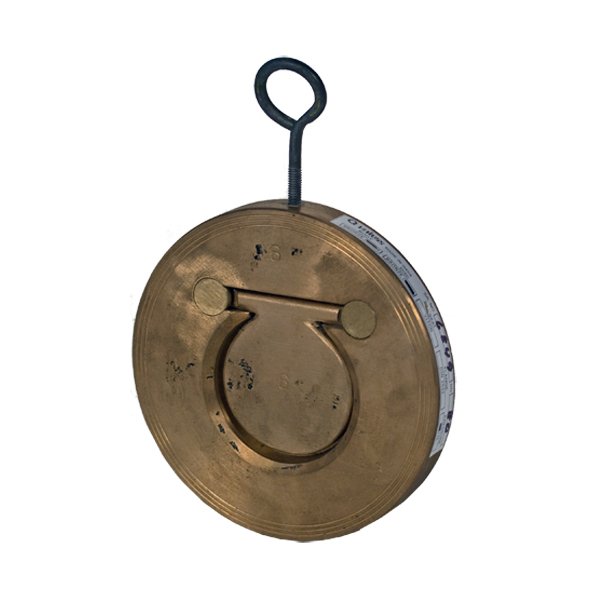

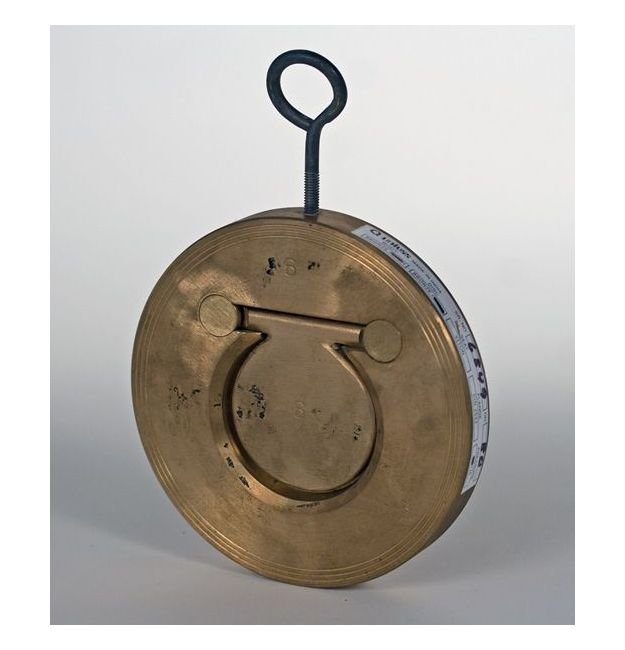

Introducing the PN 16 Swing Check Valves, Wafer Style Short with a durable bronze valve body and synthetic seat materials. Designed to meet DIN standards, this valve ensures reliable performance with options for different disc materials. Equipped with gravity actuators, this valve is ideal for hydraulic systems requiring PN16 rating.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

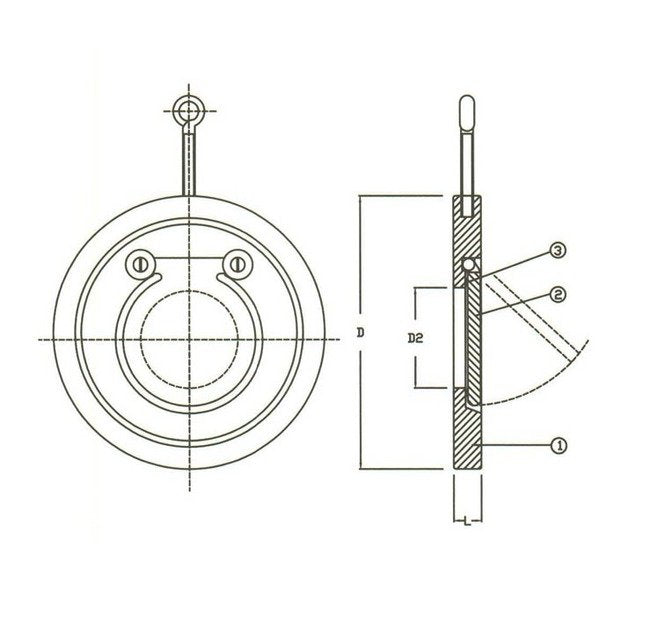

Specifications D
330 mm
Specifications D2
190 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755984
Specifications L
29.0 mm
Specifications Seat Material
Synthetic Material
Specifications Size
250
Specifications Stem Material
Brass
Specifications Weight
15.0 kg
