PN 16 Cast Iron Angle Regular Valve - DIN Angle Valve

Name: PN 16 Cast Iron Angle Regular Valve - DIN Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-0f9e78
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-0f9e78

Durable PN 16 Cast Iron Angle Valve for industrial applications. Cast iron body, stainless steel components, DIN2501-PN16 flanges. Manual operation with handwheel actuators.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Iron Angle Regular Valve is designed for superior performance in industrial settings. Constructed with a cast iron body, stainless steel stem, disc, and seat, this valve ensures durability and corrosion resistance. With a size of 125 and flanges meeting DIN2501-PN16 standards, it offers reliable hydraulic control. The handwheel actuators provide easy manual operation, making it suitable for a wide range of applications. Compliant with ISO5752 Series 8, this valve is a robust and efficient choice for demanding environments.

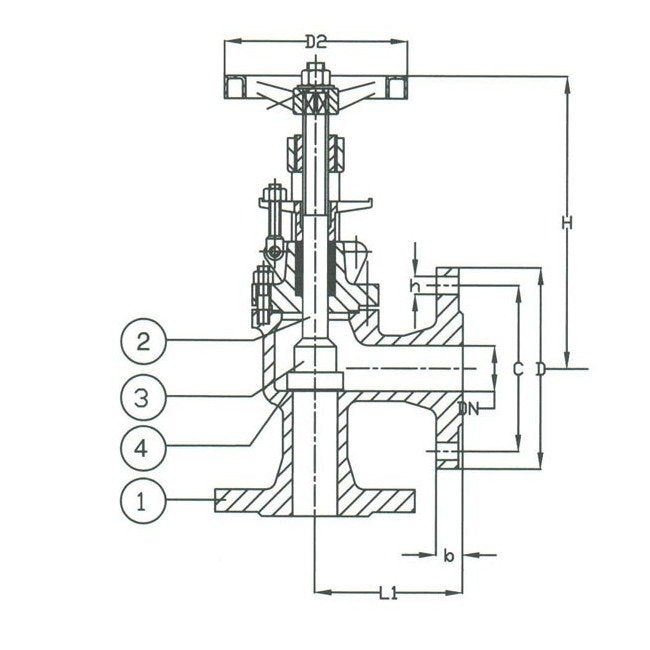

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications D2

225 mm

Specifications Disc Material

Stainless Steel

Specifications H

355 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

200 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

125

Specifications Stem Material

Stainless Steel

Specifications T

22 mm

Specifications Weight

46 kg
