PN 16 Cast Iron Angle Regular Valve - DIN2501-PN16
PN 16 Cast Iron Angle Regular Valve - DIN2501-PN16
SKU:VAL-f40447
Reliable PN 16 Cast Iron Angle Valve for industrial fluid control. Corrosion-resistant, DIN2501-PN16 Flanges.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle Regular Valve - DIN2501-PN16
$149.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle Regular Valve - DIN2501-PN16
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Angle Regular Valve is crafted with a durable Cast Iron body and precision-engineered Stainless Steel components, ensuring reliable performance in industrial settings. Featuring a corrosion-resistant construction and Flanges according to DIN2501-PN16 standards, this valve is ideal for fluid control applications requiring robust materials and precise dimensions. With a focus on quality and compliance, this valve meets stringent industry standards for durability and performance.

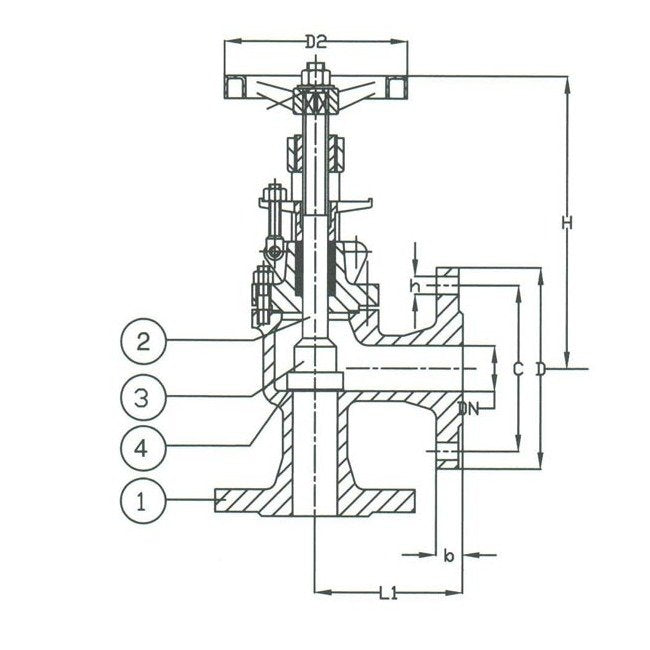

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
6.60 kg
