PN 16 Cast Iron Angle Regular Valve - Size 200, DIN Angle Valve
PN 16 Cast Iron Angle Regular Valve - Size 200, DIN Angle Valve
SKU:VAL-73b125
Durable PN 16 Cast Iron Angle Valve - DIN2501-PN16 compliant, ideal for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle Regular Valve - Size 200, DIN Angle Valve
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle Regular Valve - Size 200, DIN Angle Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

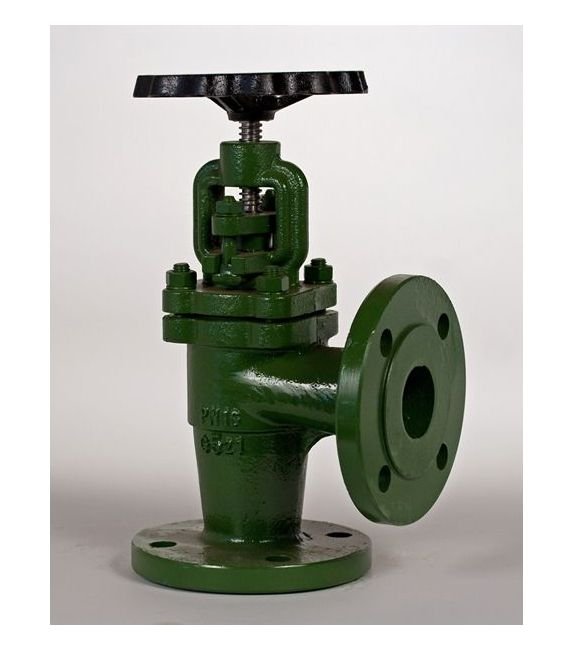

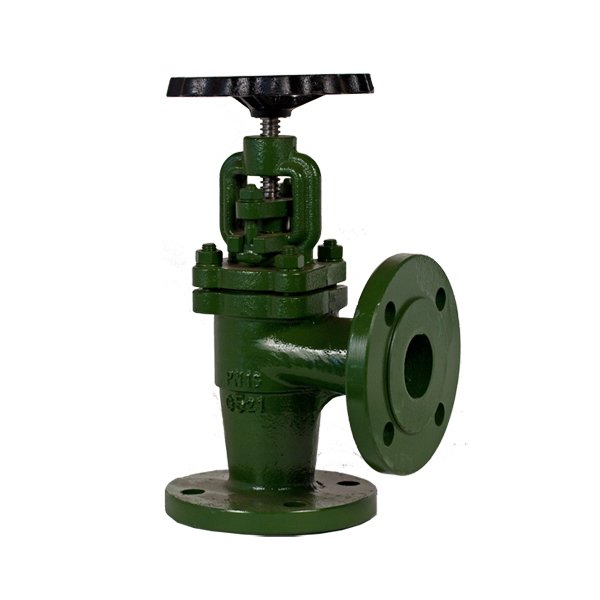

The PN 16 Cast Iron Angle Regular Valve is a robust solution for fluid control applications, featuring a cast iron body, stainless steel stem, disc, and seat. With precise dimensions meeting DIN2501-PN16 standards, this valve is designed for reliability and longevity. The handwheel actuator allows for manual control, while the flanged connection ensures secure installation. Ideal for industrial and institutional settings requiring durable performance.

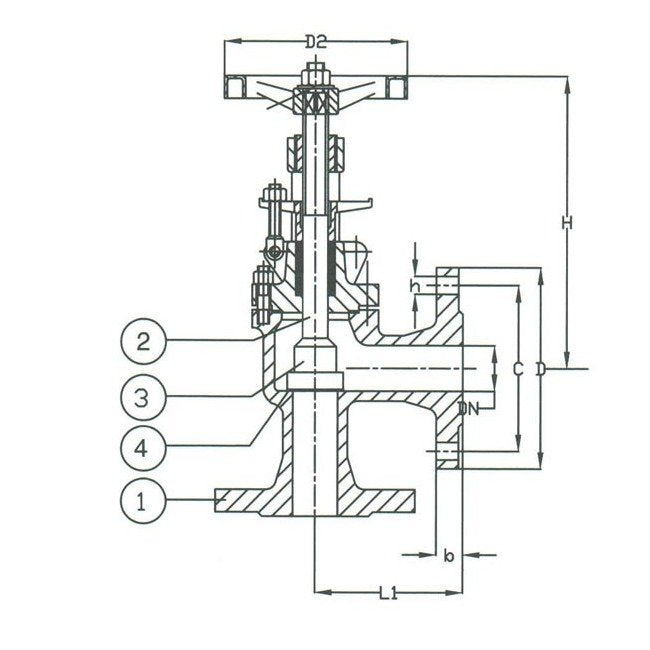

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Stainless Steel
Specifications H
500 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
275 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
126 kg
