PN 16 Cast Iron Angle SDNR Valve - 020 Size
PN 16 Cast Iron Angle SDNR Valve - 020 Size
SKU:VAL-4c9016
Durable PN 16 Cast Iron Angle Valve for industrial fluid control with Handwheel actuator and DIN2501-PN16 flanges.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle SDNR Valve - 020 Size
$89.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle SDNR Valve - 020 Size
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Angle SDNR Valve is a robust solution for fluid control, featuring a Cast Iron body with Stainless Steel components for durability. Equipped with a Handwheel actuator and Flanged Drilled connection, this valve ensures reliable performance in industrial settings. Compliant with ISO5752 Series 8 standards and DIN2501-PN16 flange specifications, it meets the stringent requirements of institutional buyers.

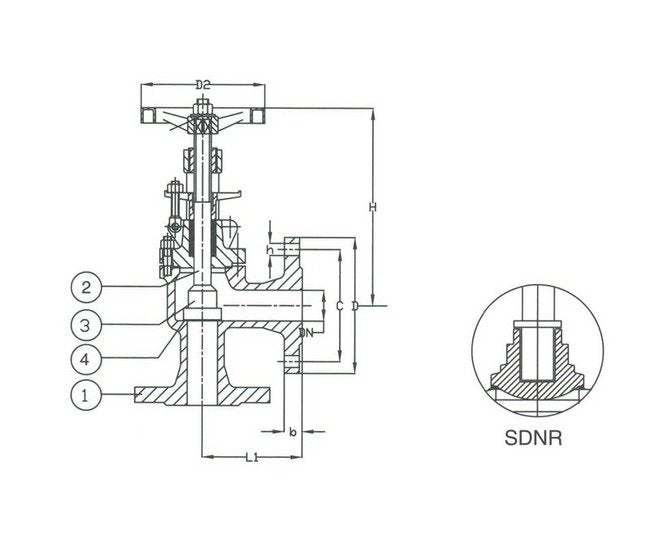

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
75 mm
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
135 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
95 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
4.5 kg
