PN 16 Cast Iron Angle SDNR Valve - 100mm
PN 16 Cast Iron Angle SDNR Valve - 100mm
SKU:VAL-4507bd
Durable PN 16 Cast Iron Angle SDNR Valve - perfect for industrial applications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle SDNR Valve - 100mm
$349.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle SDNR Valve - 100mm
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Angle SDNR Valve is a robust solution designed for industrial applications requiring durability and reliability. Constructed with a Cast Iron body and Stainless Steel components (Seat, Disc, and Stem), this valve ensures lasting performance under high pressure. Compliant with ISO5752 Series 8 and DIN2501-PN16 standards, this valve offers secure sealing and efficient flow control. The Handwheel Actuator allows for manual operation, and the Flanged Drilled Connection simplifies installation. Ideal for sectors requiring precision and quality in valve systems.

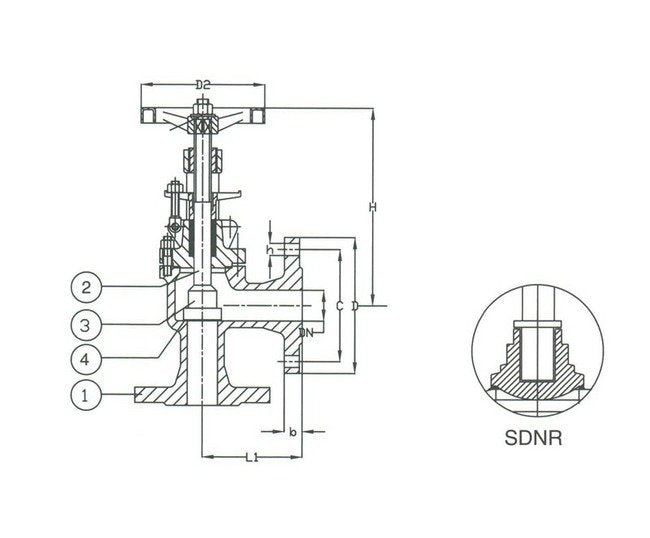

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
32.0 kg
