PN 16 Cast Iron Angle SDNR Valve - 200 Size, Flanged Drilled

Name: PN 16 Cast Iron Angle SDNR Valve - 200 Size, Flanged Drilled
Brand: World Wide Metric, Inc.
SKU: VAL-356336
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-356336

Durable PN 16 Cast Iron Angle SDNR Valve, 200 Size, Flanged Drilled connection for reliable industrial use.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Iron Angle SDNR Valve is engineered for durability and reliability in industrial applications. Constructed with high-quality Cast Iron body, Stainless Steel seat, disc, and stem, this valve ensures long-term performance. Featuring a handwheel actuator and flanged drilled connection, it offers easy operation and installation. With compliance to ISO5752 Series 8 and DIN2501-PN16 standards, this valve is suitable for institutional and government procurement needs.

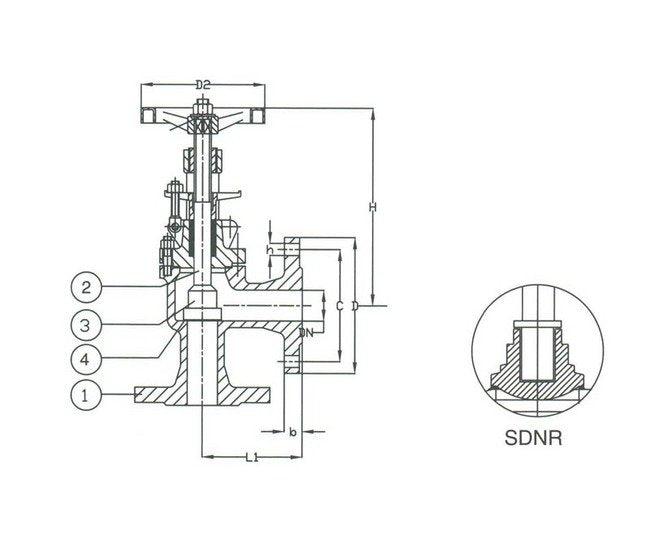

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Stainless Steel

Specifications H

500 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

275 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

200

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

126 kg
