PN 16 Cast Iron Angle SDNR Valve - 300 Size

Name: PN 16 Cast Iron Angle SDNR Valve - 300 Size
Brand: World Wide Metric, Inc.
SKU: VAL-58af94
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-58af94

Durable PN 16 Cast Iron Angle SDNR Valve - Perfect for industrial use

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Iron Angle SDNR Valve is a robust solution crafted with a Cast Iron body, Stainless Steel stem, disc, and seat, ensuring durability and smooth operation. Compliant with ISO5752 Series 8 standards, featuring DIN2501-PN16 flanges, this valve offers reliable performance in various applications. With precise hydraulic inspections, a solid construction, and convenient handwheel actuators, this valve is ideal for industrial settings requiring quality and longevity.

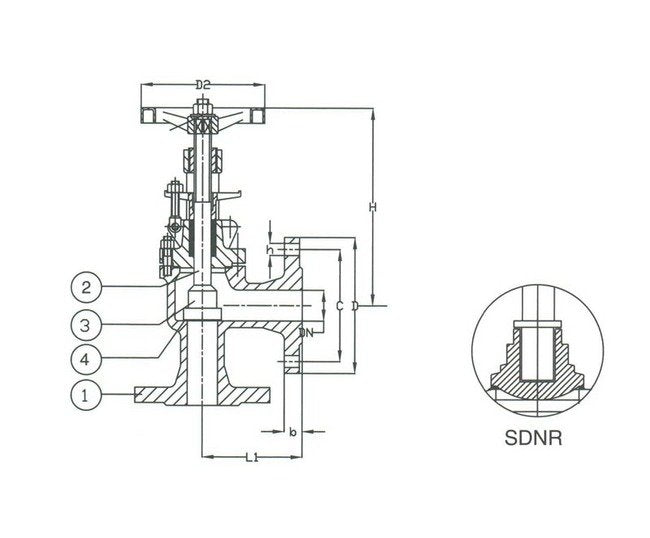

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

410 mm

Specifications Connection

Flanged Drilled

Specifications D

460 mm

Specifications D2

500 mm

Specifications Disc Material

Stainless Steel

Specifications H

630 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

375 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

300

Specifications Stem Material

Stainless Steel

Specifications T

26 mm

Specifications Weight

270 kg

PN 16 Cast Iron Angle SDNR Valve - 300 Size
