PN 16 Cast Iron Angle SDNR Valve - DIN 2501-PN16
PN 16 Cast Iron Angle SDNR Valve - DIN 2501-PN16
SKU:VAL-711545
Premium PN 16 Cast Iron Angle Valve - Reliable, Durable, and DIN 2501-PN16 Compliant
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle SDNR Valve - DIN 2501-PN16
$199.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle SDNR Valve - DIN 2501-PN16
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

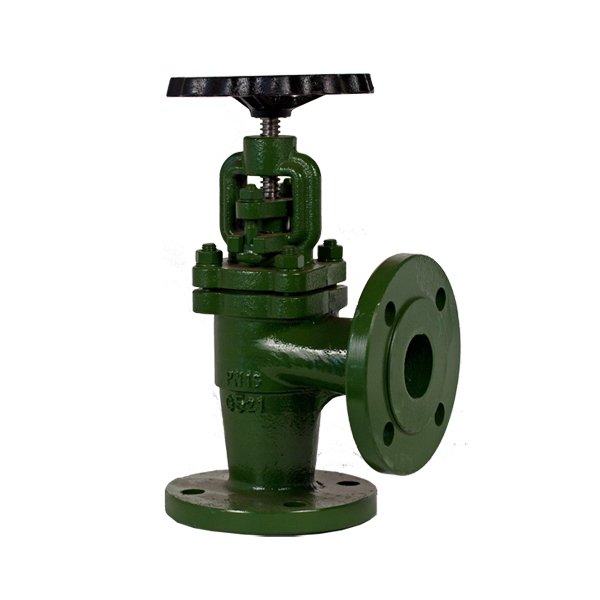

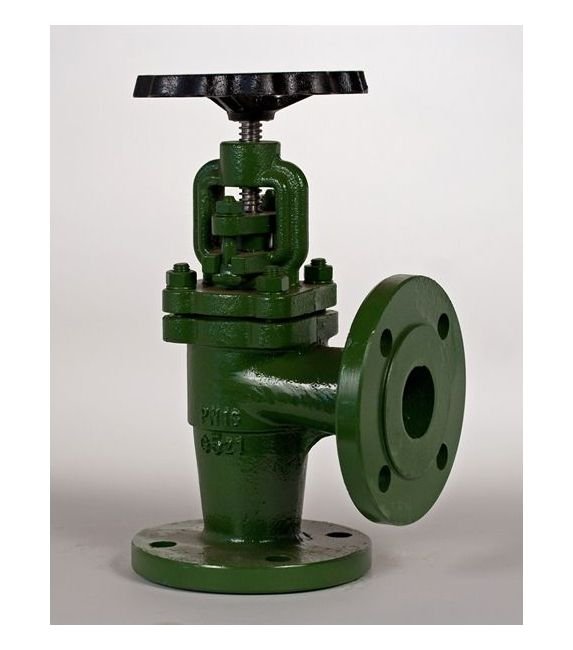

The PN 16 Cast Iron Angle SDNR Valve is a robust solution for fluid control applications, featuring a Cast Iron body, Stainless Steel stem, disc, and seat, and Flanges compliant with DIN2501-PN16 standards. With a durable construction and precise dimensions according to ISO5752 Series 8, this valve ensures reliable performance and longevity. Ideal for industrial settings requiring secure shut-off and control, this valve is designed for ease of operation and maintenance, making it an excellent choice for both consumer and institutional buyers.

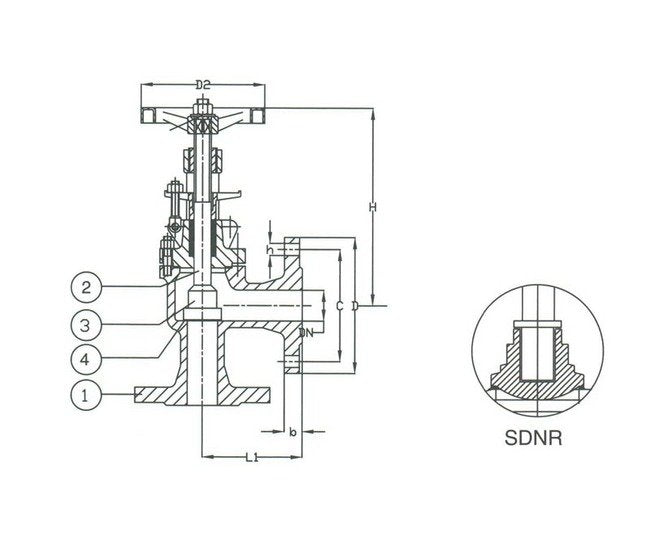

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
280 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
23.0 kg
