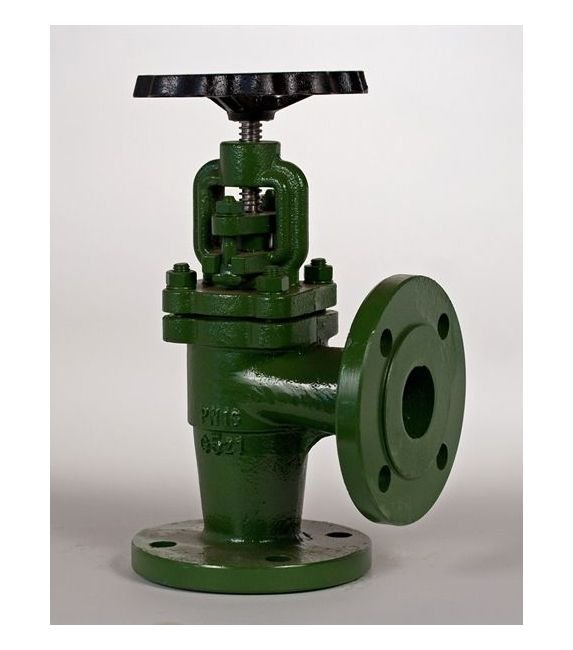

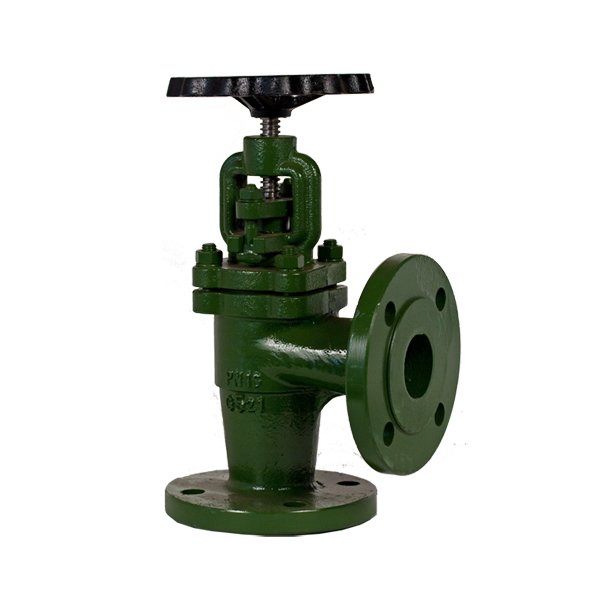

PN 16 Cast Iron Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
PN 16 Cast Iron Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
SKU:VAL-71b162
Durable PN 16 Cast Iron Angle SDNR Valve with stainless steel components, DIN2501-PN16 compliant.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
$159.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Angle SDNR Valve is a robust solution for fluid control applications, featuring a cast iron body, stainless steel stem, disc, and seat for durability. With a size of 040 and complying with ISO5752 Series 8 standards, this valve ensures reliable performance. The handwheel actuator offers easy operation, and the flanges meet DIN2501-PN16 specifications, making it suitable for a variety of industrial settings.

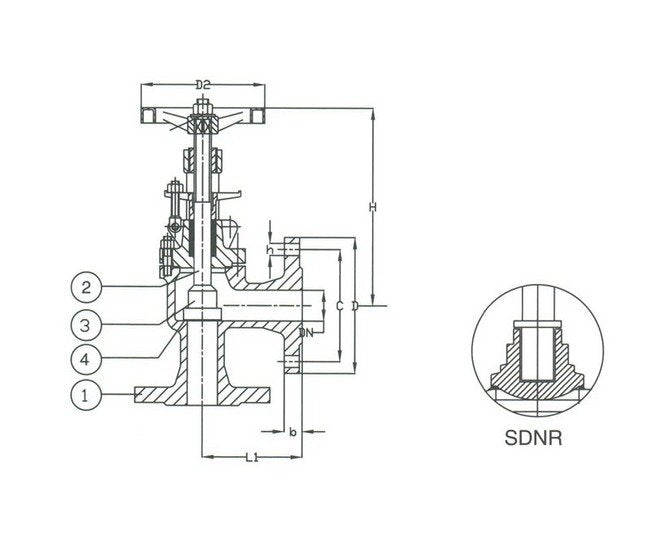

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
110 mm
Specifications Connection
Flanged Drilled
Specifications D
150 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
200 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
115 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
040
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
9.10 kg
