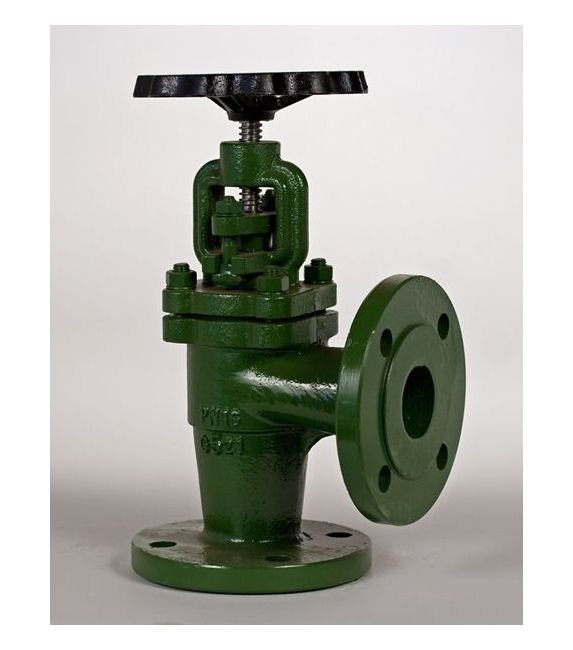

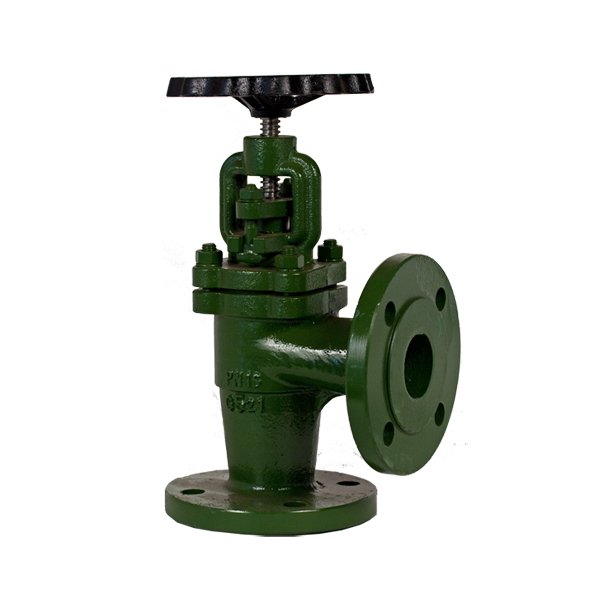

PN 16 Cast Iron Angle SDNR Valve - Size: 250mm
PN 16 Cast Iron Angle SDNR Valve - Size: 250mm
SKU:VAL-e11d41
High-quality PN 16 Cast Iron Angle SDNR Valve for industrial applications. Cast Iron body, Stainless Steel components, and DIN2501-PN16 compliant. Ensure reliable flow control.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PN 16 Cast Iron Angle SDNR Valve - Size: 250mm
$899.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Angle SDNR Valve - Size: 250mm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Angle SDNR Valve is crafted with precision and durability in mind. Its Cast Iron body, Stainless Steel stem, disc, and seat ensure longevity and reliability. Compliant with ISO5752 Series 8 and DIN2501-PN16 standards, this valve offers efficient hydraulic inspections and a robust design. Ideal for industrial applications requiring a reliable flow control solution.

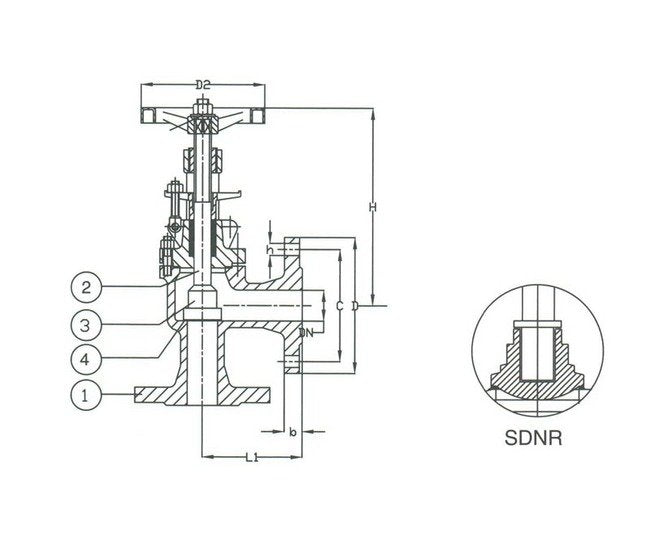

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
355 mm
Specifications Connection
Flanged Drilled
Specifications D
405 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
580 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
325 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
250
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
184 kg
