PN 16 Cast Iron DIN Angle Valve

Name: PN 16 Cast Iron DIN Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-655b87
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-655b87

Precise PN 16 Cast Iron DIN Angle Valve designed for durability and compliance with DIN2501-PN16 standards, perfect for institutional use.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

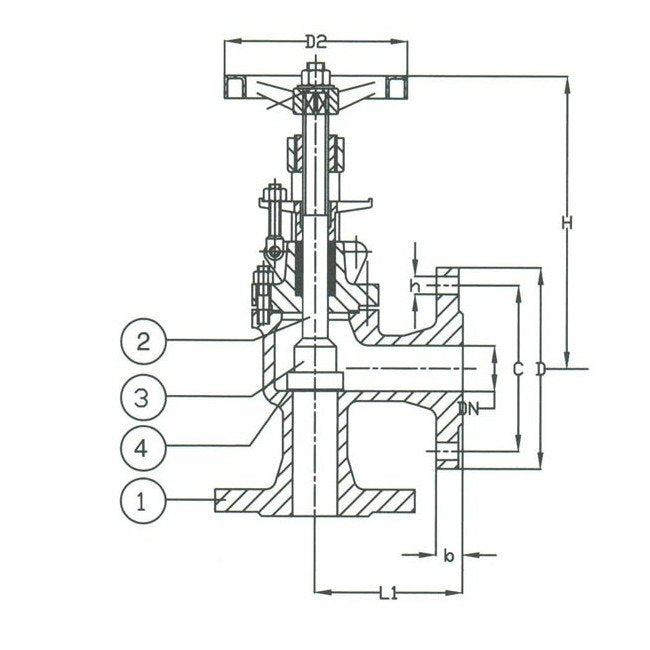

The PN 16 Cast Iron DIN Angle Valve is built for durability and precision. Featuring a cast iron body, stainless steel stem, disc, and seat, this valve ensures long-lasting performance in hydraulic systems. With flanges according to DIN2501-PN16 standards, this valve meets the strict requirements of institutional and government procurement. The handwheel actuator allows for manual control, making it versatile for various applications. Size: 150, Weight: 67 kg, Dimensions: L1: 225mm, D: 285mm, C: 240mm. Trust in this valve for reliability and compliance with industry standards.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

385 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

225 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

22 mm

Specifications Weight

67 kg

PN 16 Cast Iron DIN Angle Valve
