PN 16 Cast Iron Lift Check Angle Pattern Valve - DIN Check Valve

Name: PN 16 Cast Iron Lift Check Angle Pattern Valve - DIN Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-5da8fb
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-5da8fb

Durable PN 16 Cast Iron Lift Check Angle Pattern Valve - DIN Check Valve, ideal for various applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Iron Lift Check Angle Pattern Valve is a reliable and durable valve suitable for various applications. Constructed with Cast Iron body, Stainless Steel disc, and seat, this valve ensures long-term performance. Compliant with DIN standards, it features a Handwheel actuator for easy operation and precise control. With hydraulic inspections in place and flanges meeting DIN2501-PN16 specifications, this valve is a top choice for institutional buyers seeking quality and functionality.

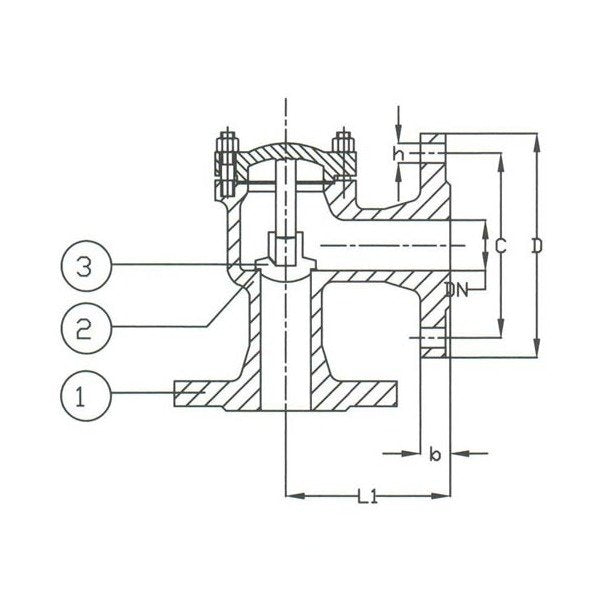

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications Disc Material

Stainless Steel

Specifications H

22 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755865 | 755895

Specifications L1

225 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

22 in

Specifications Weight

67 kg
