PN 16 Cast Iron Lift Check Angle Valve

Name: PN 16 Cast Iron Lift Check Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-372691
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-372691

Durable PN 16 Cast Iron Lift Check Angle Valve meeting DIN standards for reliable industrial performance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

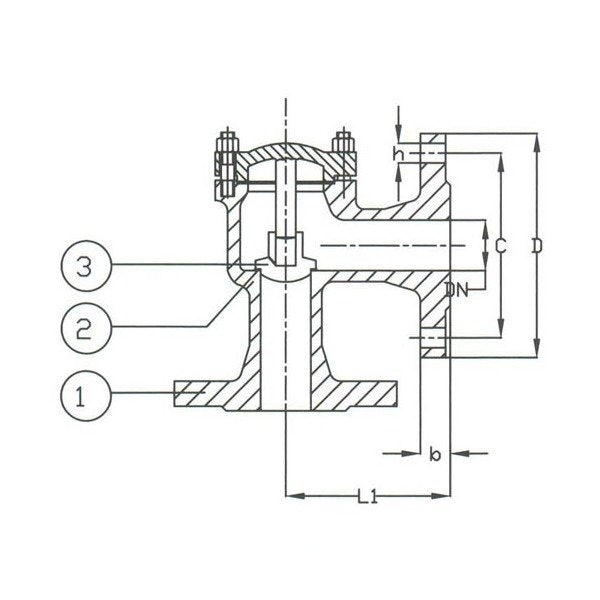

The PN 16 Cast Iron Lift Check Angle Valve is a durable and reliable valve designed for optimal performance in industrial settings. Constructed with Cast Iron body, Stainless Steel disc, and seat according to DIN standards, this valve ensures longevity and corrosion resistance. With Face to Face and Face to Center dimensions meeting DIN standards, and Flanges according to DIN2501-PN16, this valve offers precise installation and consistent operation. The Handwheel Actuator provides ease of use, making it suitable for various applications.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications Disc Material

Stainless Steel

Specifications H

14 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755857 | 755887

Specifications L1

100 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

025

Specifications Stem Material

Stainless Steel

Specifications T

16 in

Specifications Weight

3.6 kg

PN 16 Cast Iron Lift Check Angle Valve
