PN 16 Cast Iron Lift Check Angle Valve - DIN Certified
PN 16 Cast Iron Lift Check Angle Valve - DIN Certified
SKU:VAL-05fe1e
Durable PN 16 Cast Iron Lift Check Angle Valve with Stainless Steel components, ideal for industrial flow control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PN 16 Cast Iron Lift Check Angle Valve - DIN Certified
$599.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Lift Check Angle Valve - DIN Certified
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Lift Check Angle Valve is designed for robust performance in industrial settings. Constructed with a Cast Iron body, Stainless Steel disc and seat, this valve ensures durability and reliability. Compliant with DIN standards for Face to Face and Flanges, it offers secure hydraulic inspections and precise measurements. The valve is equipped with a Handwheel actuator for easy operation, making it ideal for applications requiring efficient flow control.
Ready to Grow Without Cash Flow Constraints?

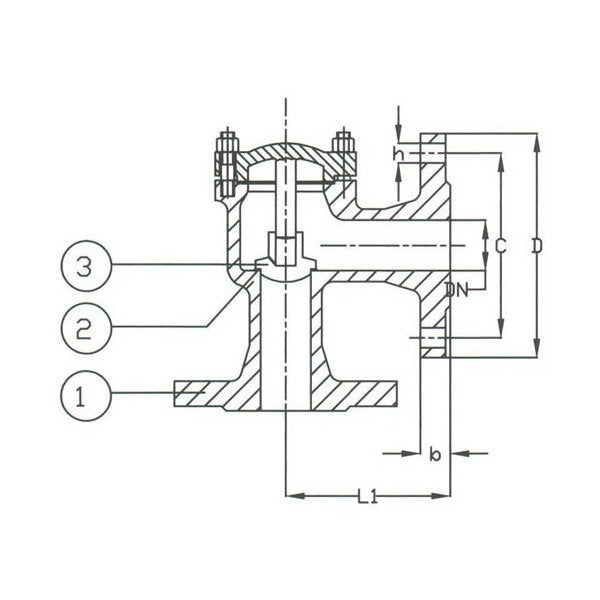

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications Disc Material
Stainless Steel
Specifications H
22 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755867 | 755897
Specifications L1
275 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
24 in
Specifications Weight
152 kg
