PN 16 Cast Iron Lift Check Angle Valve - DIN Valves

Name: PN 16 Cast Iron Lift Check Angle Valve - DIN Valves
Brand: World Wide Metric, Inc.
SKU: VAL-0cfee2
Price: 79.99 USD
Availability: OutOfStock

SKU:VAL-0cfee2

Durable PN 16 Cast Iron Lift Check Angle Valve with Stainless Steel components, DIN standard compliant.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

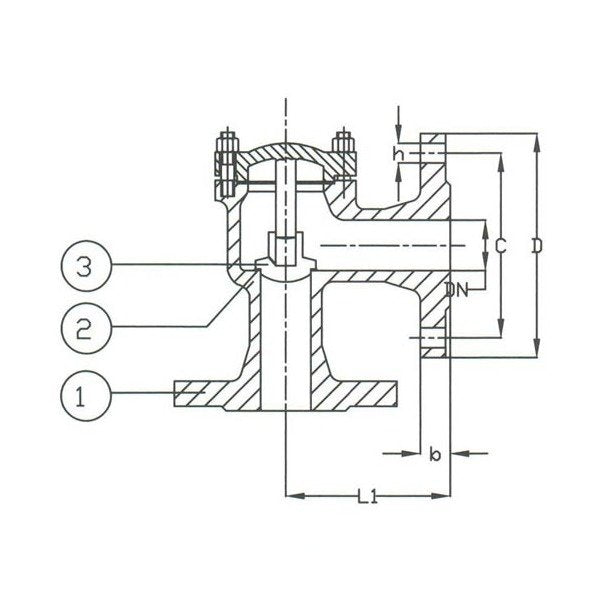

The PN 16 Cast Iron Lift Check Angle Pattern Valve is designed for durability and reliability. Constructed with a Cast Iron body, Stainless Steel disc, stem, and seat, this valve ensures corrosion resistance and longevity. Compliant with DIN standards, offering precise Face to Face and Face to Center dimensions as per DIN 3202, and Flanges according to DIN2501-PN16. With a compact design and handwheel actuators for easy operation, this valve is ideal for various industrial applications.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications Disc Material

Stainless Steel

Specifications H

14 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755855 | 755885

Specifications L1

90 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

015

Specifications Stem Material

Stainless Steel

Specifications T

14 in

Specifications Weight

2.2 kg
