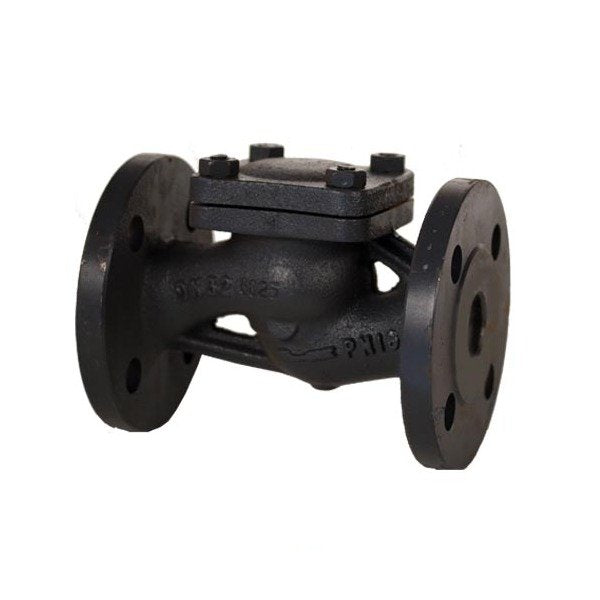

PN 16 Cast Iron Lift Check Globe Pattern Valve - DIN Check Valve
PN 16 Cast Iron Lift Check Globe Pattern Valve - DIN Check Valve
SKU:VAL-d03207
Premium PN 16 Cast Iron Valve with Stainless Steel Disc & Seat. DIN Compliant. Ideal for hydraulic applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
PN 16 Cast Iron Lift Check Globe Pattern Valve - DIN Check Valve
$149.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Lift Check Globe Pattern Valve - DIN Check Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Lift Check Globe Pattern Valve is expertly crafted for optimal performance and durability. Constructed with a Cast Iron body and Stainless Steel disc and seat materials, this valve ensures robustness and corrosion resistance. Compliant with DIN standards, it features a Handwheel actuator for easy operation and precise control. Ideal for hydraulic applications, this valve boasts a reliable design meeting stringent quality and performance standards.

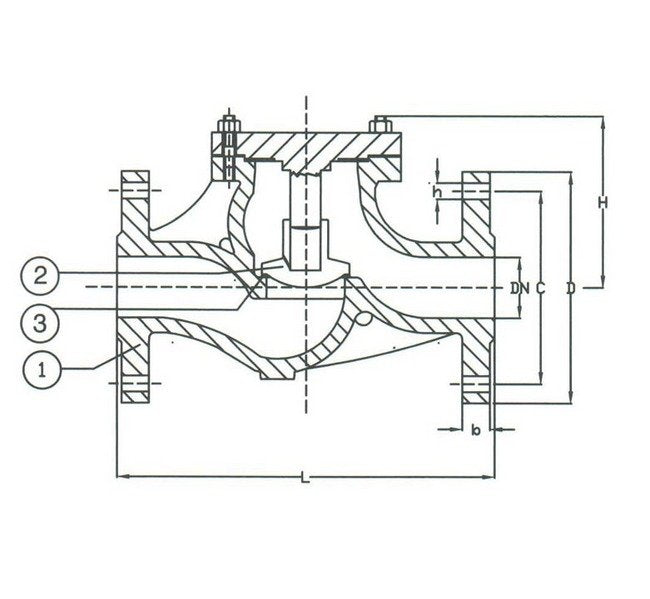

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
75 mm
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications Disc Material
Stainless Steel
Specifications H
75 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753602 | 755842 | 755872
Specifications L
150 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Stem Material
Stainless Steel
Specifications T
16 in
Specifications Weight
3.00 kg
