PN 16 Cast Iron Swing Check Valve - DIN 2501-PN16 Flanged Drilled, 125 Size
PN 16 Cast Iron Swing Check Valve - DIN 2501-PN16 Flanged Drilled, 125 Size
SKU:VAL-d2338a
Durable PN 16 Cast Iron Swing Check Valve for precise flow control, compliant with DIN standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Cast Iron Swing Check Valve - DIN 2501-PN16 Flanged Drilled, 125 Size
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Iron Swing Check Valve - DIN 2501-PN16 Flanged Drilled, 125 Size
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Iron Swing Check Valve is a reliable solution for fluid control applications. Constructed with GG253 Cast Iron body, Brass disc, and hinge, and UNI 5035 Brass seat, this valve ensures durability and smooth operation. Compliant with DIN 3202-F6 standards, it offers precise hydraulic inspections and a secure sealing system. The valve's gravity-operated Brass stem and Bronze actuators provide easy handling, while its secure flanged connection according to DIN2501-PN16 ensures a leak-free installation.
Ready to Grow Without Cash Flow Constraints?

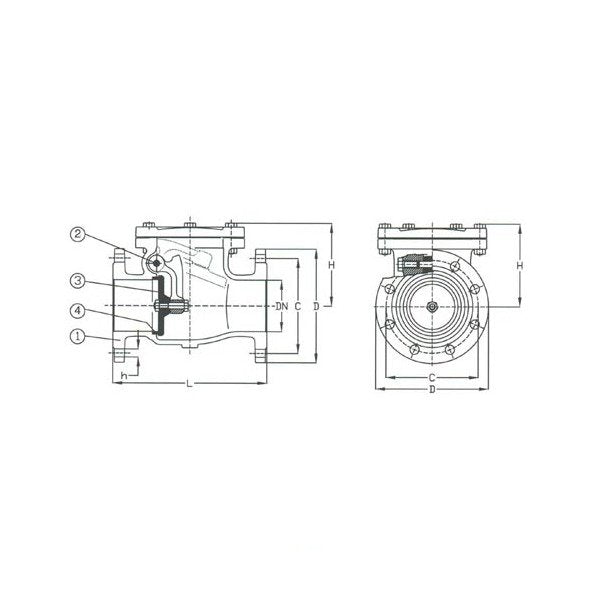

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Iron
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications Disc Material
Bronze
Specifications H
180 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753576 | 755906 | 755916
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
22 in
Specifications Weight
45.0 kg
