PN 16 Cast Steel Angle Regular Valve - 125 Size, PN16 Rating
PN 16 Cast Steel Angle Regular Valve - 125 Size, PN16 Rating
SKU:VAL-ecdcf6
Durable PN 16 Cast Steel Angle Regular Valve for industrial applications, featuring cast steel body, brass stem, stainless steel disc, and handwheel actuator.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle Regular Valve - 125 Size, PN16 Rating
$289.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle Regular Valve - 125 Size, PN16 Rating
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle Regular Valve is designed for optimal performance in industrial applications. Constructed with a cast steel body, brass stem, stainless steel disc, and a choice of brass or stainless steel seat, this valve ensures durability and efficient flow control. With flanges meeting DIN2501-PN16 standards, this valve offers exceptional reliability and ease of installation. The handwheel actuator allows for manual operation, catering to diverse operational needs. Face to Center alignment compliant with ISO5752 Series 8 further enhances its precision and usability.

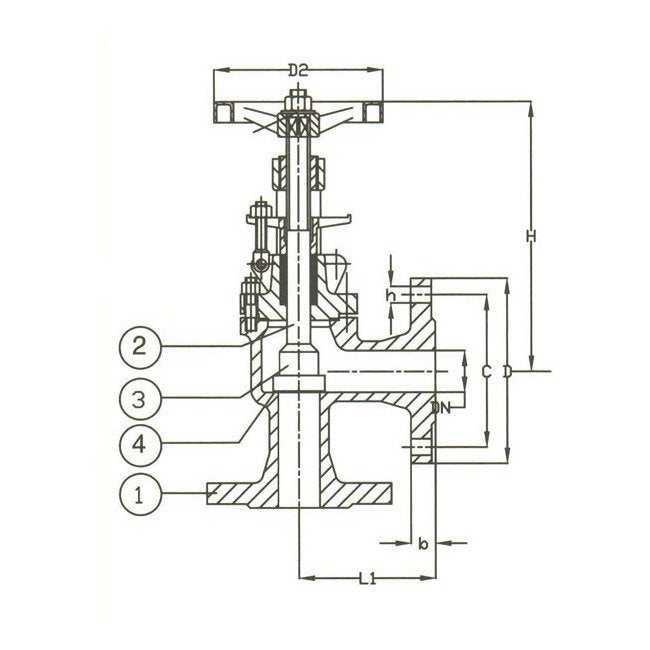

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
355 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
22 mm
Specifications Weight
46 kg
