PN 16 Cast Steel Angle Regular Valve - 200 Size
PN 16 Cast Steel Angle Regular Valve - 200 Size
SKU:VAL-d94167
Durable PN 16 Cast Steel Angle Regular Valve for precise hydraulic control in industrial settings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle Regular Valve - 200 Size
$499.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle Regular Valve - 200 Size
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

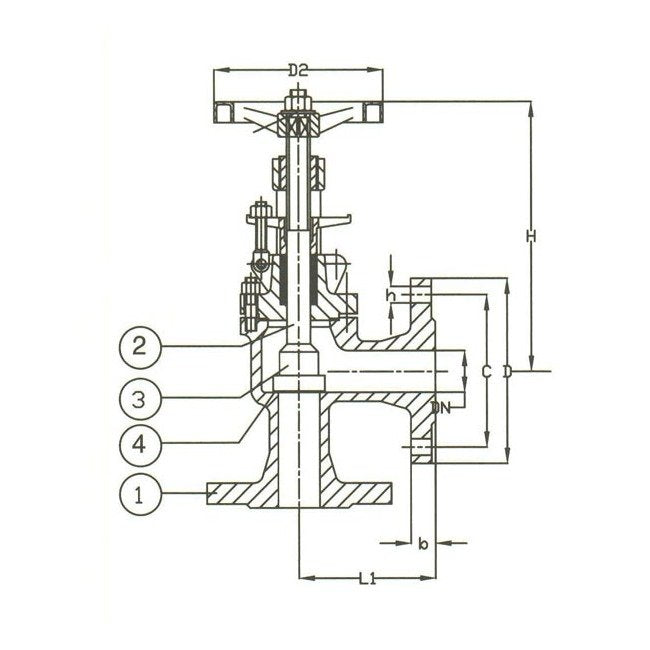

The PN 16 Cast Steel Angle Regular Valve is a robust and reliable valve designed for industrial applications. Constructed with Cast Steel body, Brass Stem, Stainless Steel Disc, and Brass/ Stainless Steel Seat, this valve ensures durability and efficient performance. Featuring handwheel actuators and flanged connection, it offers ease of operation and installation. Compliant with DIN standards, this valve meets the stringent requirements of institutional buyers, providing long-term reliability and precise control over hydraulic systems.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Stainless Steel
Specifications H
500 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
275 mm
Specifications Number Of Holes
12
Specifications Seat Material
Brass
Specifications Size
200
Specifications Stem Material
Brass
Specifications T
24 mm
Specifications Weight
126 kg
