PN 16 Cast Steel Angle Regular Valve - 300 Size
PN 16 Cast Steel Angle Regular Valve - 300 Size
SKU:VAL-5667a4
Durable PN 16 Cast Steel Angle Regular Valve for reliable hydraulic performance. ISO5752 & DIN2501-PN16 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle Regular Valve - 300 Size
$899.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle Regular Valve - 300 Size
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

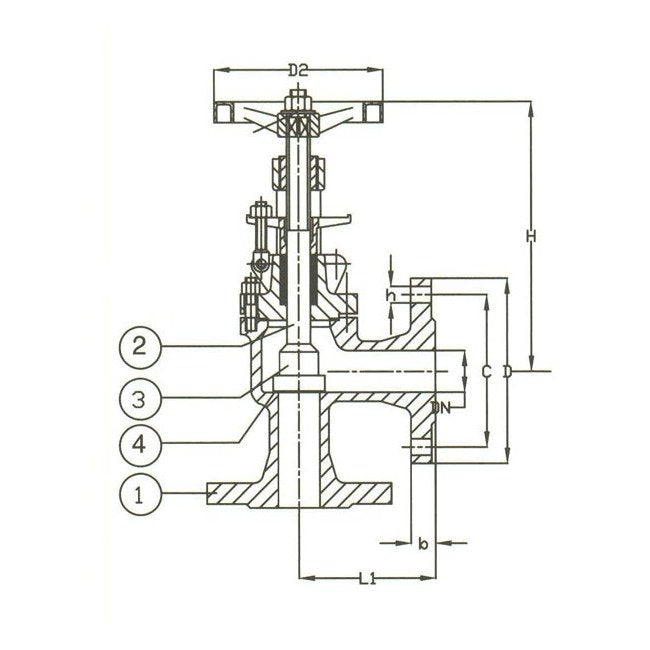

The PN 16 Cast Steel Angle Regular Valve is built for durability and performance. Featuring a Cast Steel body, Brass or Stainless Steel stem, Stainless Steel disc and seat, this valve ensures reliable operation in various hydraulic systems. With ISO5752 Series 8 compliance and DIN2501-PN16 flanges, it meets stringent industry standards for quality and reliability. The valve's dimensions of L1: 375mm, D: 460mm, C: 410mm make it suitable for industrial applications where precision and resilience are key.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
410 mm
Specifications Connection
Flanged Drilled
Specifications D
460 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
630 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
753480
Specifications L1
375 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
300
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
270 kg
