PN 16 Cast Steel Angle Regular Valve - DIN Angle Valve
PN 16 Cast Steel Angle Regular Valve - DIN Angle Valve
SKU:VAL-7d8a24
Reliable PN 16 Cast Steel Angle Valve for precise industrial flow control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle Regular Valve - DIN Angle Valve
$599.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle Regular Valve - DIN Angle Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle Regular Valve is engineered for precision and durability. Constructed with GSC-25N2 cast steel body, stainless steel disc and seat, brass or stainless steel stem, this valve ensures reliable performance. Designed to meet DIN 17672 standards, it provides optimal flow control for various industrial applications. With a robust build and precise dimensions according to DIN2501-PN16, this valve guarantees long-term efficiency and safety.

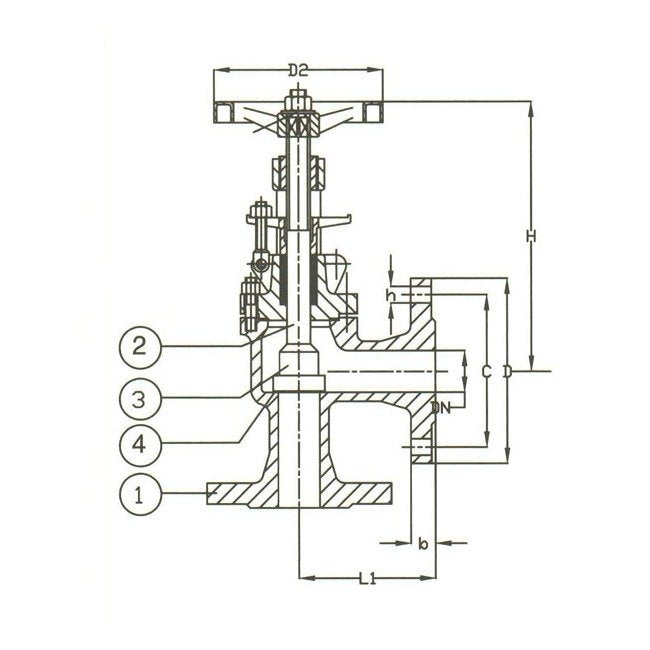

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
270 mm
Specifications Connection
Flanged Drilled
Specifications D
315 mm
Specifications D2
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
470 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753477
Specifications L1
250 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
175
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
92 kg
