PN 16 Cast Steel Angle Regular Valve - Industrial Grade DIN Valve

Name: PN 16 Cast Steel Angle Regular Valve - Industrial Grade DIN Valve
Brand: World Wide Metric, Inc.
SKU: VAL-c55b1c
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-c55b1c

Industrial-grade PN 16 Cast Steel Angle Regular Valve for precise hydraulic control in DIN systems.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

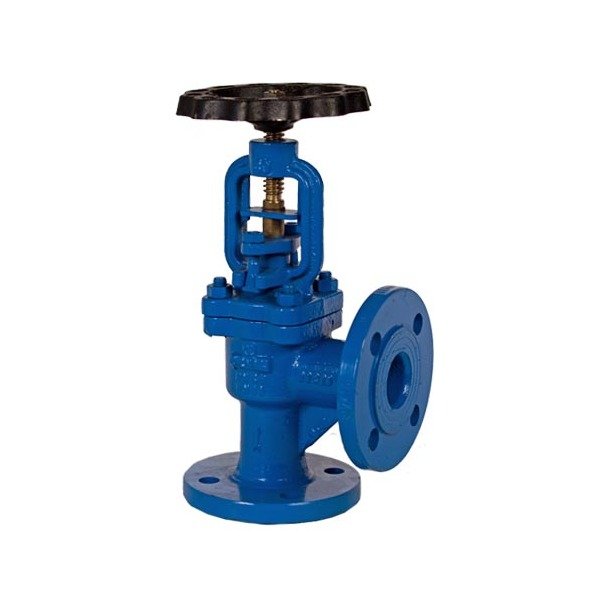

The PN 16 Cast Steel Angle Regular Valve is a robust solution for industrial fluid control systems. Constructed with Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat materials, this valve ensures longevity and reliable performance. Featuring a Handwheel actuator and Flanged Drilled connection, it offers effortless operation and easy installation. Compliant with DIN 17672 and ISO5752 Series 8 standards, this valve guarantees precision and efficiency in hydraulic applications.

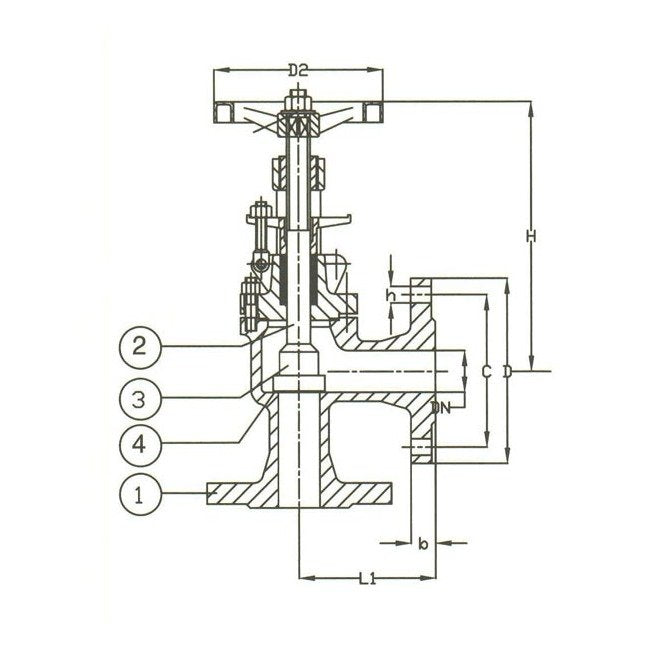

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

385 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

225 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

150

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

67 kg
