PN 16 Cast Steel Angle SDNR Valve - DIN 2501-PN16
PN 16 Cast Steel Angle SDNR Valve - DIN 2501-PN16
SKU:VAL-7a0ca5
Durable PN 16 Cast Steel Angle SDNR Valve for precise flow control. DIN standard compliant with handwheel actuators for easy operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle SDNR Valve - DIN 2501-PN16
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle SDNR Valve - DIN 2501-PN16
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle SDNR Valve is designed for reliable performance in demanding industrial applications. Constructed with a cast steel body, stainless steel seat, disc, and stem materials, this valve ensures durability and corrosion resistance. The brass or stainless steel seat enhances sealing efficiency for optimal flow control. Meeting DIN standards, this valve offers precise hydraulic inspection capabilities, including a size of 150, hydraulic inspection of 25 for the body and 16 for the seat, and flanges according to DIN2501-PN16. With its handwheel actuators and flanged drilled connection, this valve provides ease of operation and installation.
Ready to Grow Without Cash Flow Constraints?

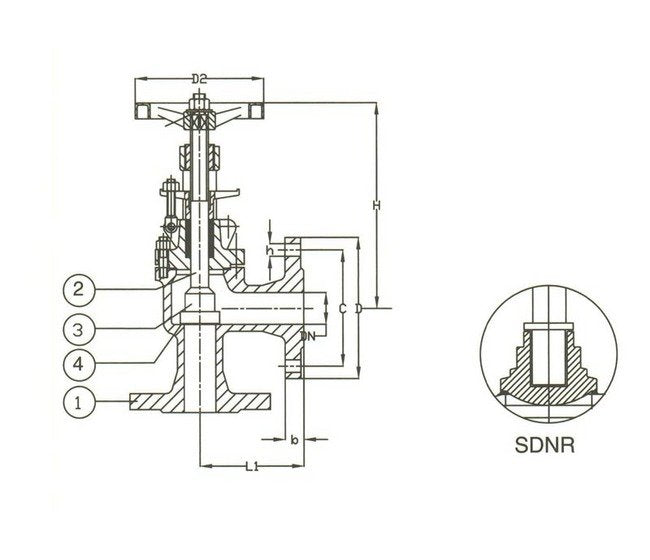

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
240 mm
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications D2
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
385 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
225 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
22 mm
Specifications Weight
67 kg
