PN 16 Cast Steel Angle SDNR Valve - DIN 2501 PN16 Flanged Drilled
PN 16 Cast Steel Angle SDNR Valve - DIN 2501 PN16 Flanged Drilled
SKU:VAL-b13a83
Durable PN 16 Cast Steel Angle SDNR Valve, DIN 17672 compliance, Handwheel actuator, ideal for industrial use.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle SDNR Valve - DIN 2501 PN16 Flanged Drilled
$349.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle SDNR Valve - DIN 2501 PN16 Flanged Drilled
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle SDNR Valve offers reliable performance in industrial applications. Constructed with a Cast Steel body, Brass stem, and Stainless Steel disc, this valve ensures durability and corrosion resistance. With compliance to DIN 17672 standards for Brass components and ISO5752 Series 8 for Face to Center alignment, it meets rigorous industry requirements. Suitable for hydraulic systems operating at 16 bar, this valve is equipped with a Handwheel actuator and features precision-engineered components for optimal functionality.
Ready to Grow Without Cash Flow Constraints?

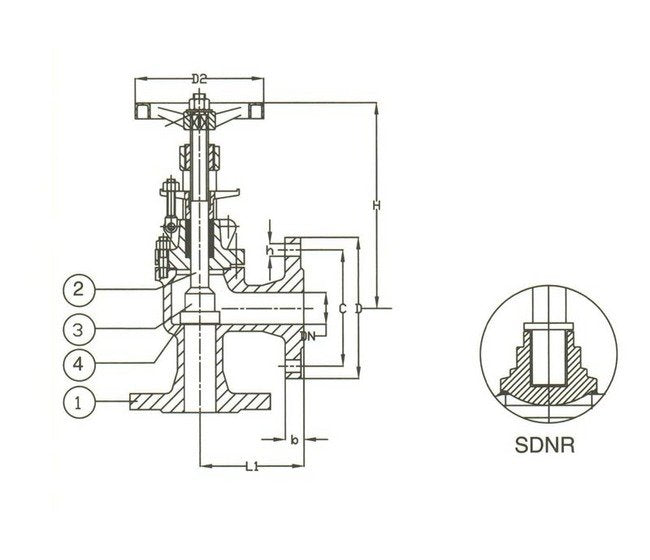

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
100
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
32.0 kg
