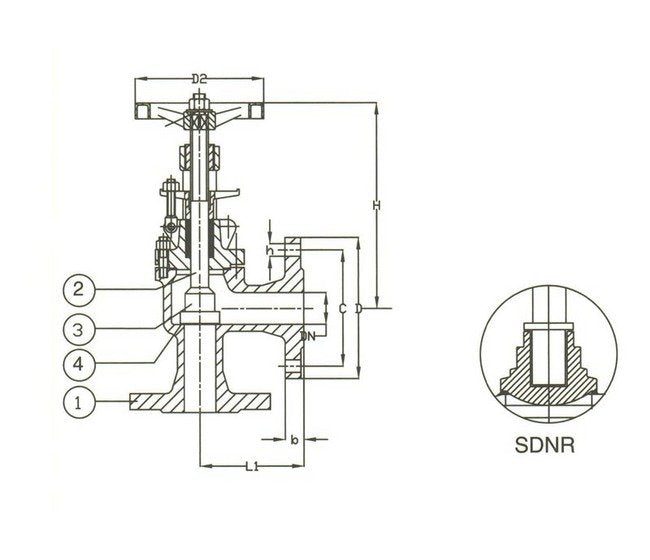

The PN 16 Cast Steel Angle SDNR Valve is a robust choice for industrial applications, featuring a Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat, meeting stringent DIN standards. With precise dimensions of L1: 105.0 mm, D: 140 mm, C: 100 mm, and a weight of 6.60 kg, this valve ensures reliable hydraulic performance. The flanges adhere to DIN2501-PN16 specifications, guaranteeing seamless integration and secure connections for optimal functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
032
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
6.60 kg
